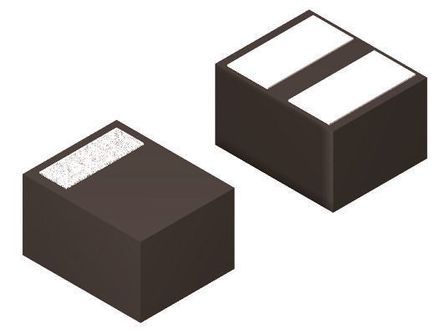

点击放大查看
UCLAMP3311P.TCT
| Manufacturer | |
| Description | ESD Suppressor TVS ±25KV 2-Pin SLP EP T/R TVS DIODE 3.3VWM 18VC 2SLP TVS Diode Bi-Directional UCLAMP3311P.TCT 18V, 90W, SLP EP 2-Pin Diode TVS Single Bi-Dir 3.3V 90W 2-Pin SLP EP T/R uClamp3.3VforESDandCDEProtection TVS DIODE 3.3VWM 18VC 2SLP ; HT SUSA CODE:8541100050 Semtech 双向 TVS 二极管, 90W, 18V, 2针 SLP EP封装 ESD Suppressors / TVS Diodes UCLAMP LOW VOLTAGE ESD PROT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | UCLAMP3311PCT | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| ESD Protection | ±25@Air Gap/±20@Contact Disc | ||
Electrical
| Voltage Rating | 3.3 | Voltage - Supply | 3.3V (Max) |
| Number of Channels | 1 Channel | Number of Elements | 1 |
| Power - Peak Pulse | 90W | Voltage - Clamping | 18V |
| Capacitance @ Vr, F | 10 pF | Voltage - Breakdown | 3.5V |
| Voltage - Off State | 3.3V | Current Rating (Max) | 0.5µA |
| Power Line Protection | No | Bidirectional Channels | 1 |
| Capacitance @ Frequency | 12pF @ 1MHz | Power - Average Forward | 90 W |
| Current - Peak Pulse (8/20us) | 5 A | Current - Reverse Leakage @ Vr | 0.5 |
| Current - Peak Pulse (10/1000us) | 5A (8/20µs) | ||
Mechanical
| Width | 0.6mm | Height | 0.47mm |
| Length | 1mm | Packaging | Tape and Reel |
| Mounting Type | Surface Mount | Number of Pins | 2 |
| Package / Case | 0402 (1005 Metric) | Length - Overall | 1 |
| Package Quantity | SLP EP | Size / Dimension | 1 x 0.6 x 0.47mm |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Shell Size - Insert | 0.47 | Supplier Device Package | SLP1006P2 |
Product Info
| Type | TVS | Series | uClamp™ |
| Polarity | Bidirectional | Diode Type | 单路 |
| Applications | General Purpose | Manufacturer | Semtech |
| Configuration | Single | Port Direction | Bi-Directional |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
