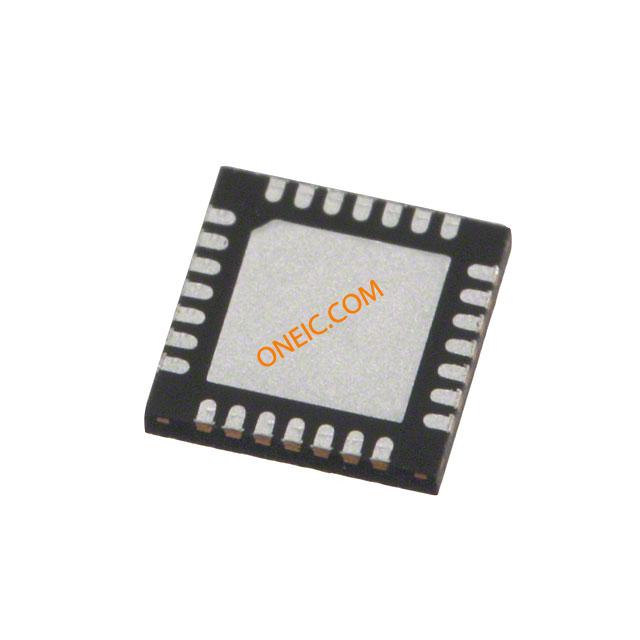

SX1503I091TRT
| Manufacturer | |
| Description | Low Voltage GPIO 20-Pin QFN-UT T/R IC GPIO EXPANDER I2C 16CH 28-QFN 16 CHANNEL HIGH VOLTAGE GPIO ; HT SUSA CODE:8542390000 Interface - I/O Expanders 16 CHANNEL HIGH VOLTAGE GPIO |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | I/O Expanders | Other Names | SX1503I091TR |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | I²C | Clock Rate | 400 kHz |
| Output Type | Push-Pull | Number of I/O | 16 |
| Clock Frequency | 400kHz | Current - Supply | 1 uA |
| Interrupt Output | Yes | Voltage - Supply | 1.2 V ~ 5.5 V |
| Current - Output Source/Sink | 8mA, 24mA | ||
Mechanical
| Width | 3 | Packaging | Tape and Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 28-UFQFN Exposed Pad | Length - Overall | 3 |
| Package Quantity | QFN-UT | Number of Positions | 20 |
| Shell Size - Insert | 0.55(Max) | Supplier Device Package | 28-QFN (4x4) |
Product Info
| Features | POR | Manufacturer | Semtech |
| Development Kit | SX1502EVK | Printed Circuit Board | 20 |
| Number of Inputs and Type | 16 I/O | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
