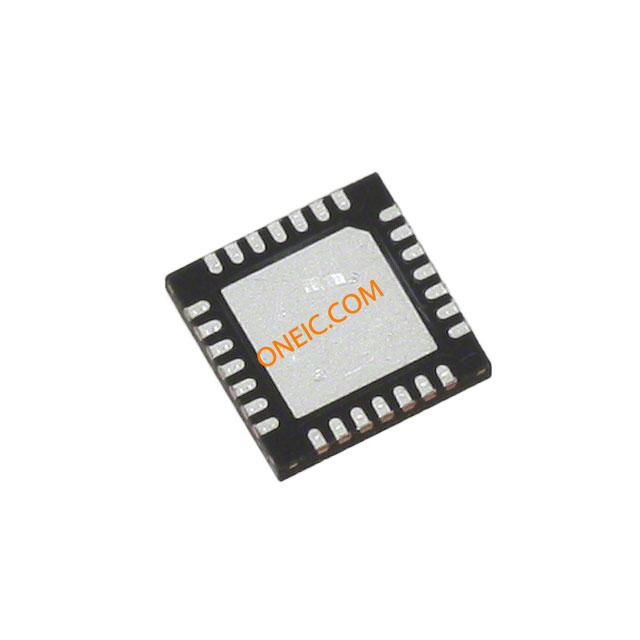

SC442ULTRT
| Manufacturer | |
| Description | LED DRVR 120Segment 5V/9V/12V/15V/18V 14-Pin MLPQ EP T/R IC LED DRVR CONST CURRENT 28MLPQ BOOST 10 STRING OF 30MA LED&AP ; HT SUSA CODE:8542390000 LED Lighting Drivers BOOST 10 STRING OF 30MA LED, S |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Lighting Drivers | Other Names | SC442ULTRTTR |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 640kHz ~ 960kHz | Voltage Rating | 4.5 V to 21 V |
| Current - Output | 30 mA | Voltage - Supply | 4.5 V ~ 21 V |
| Number of Outputs | 10 | Voltage - Input (Min) | 42V |
| Voltage - Supply (Min) | 21 | Constant Current Load - Max | Yes |
| Current - Average Rectified (Io) | Yes | ||
Mechanical
| Width | 4 | Packaging | Tape and Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 28-UFQFN Exposed Pad | Length - Overall | 4 |
| Package Quantity | MLPQ EP | Primary Material | Automotive, Backlight |
| Number of Positions | 14 | Shell Size - Insert | 0.58(Max) |
| Supplier Device Package | 28-UMLP | ||
Product Info
| Type | White LED | Series | SC44 |
| Topology | PWM, Step-Up (Boost) | Manufacturer | Semtech |
| Internal Switch(s) | Yes | Number of Segments | 120 |
| Internal Connection | Yes | Printed Circuit Board | 14 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
