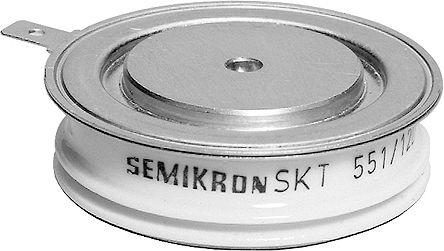

SKT 551/16 E
| Manufacturer | |
| Description | Thyristor; Capsule; 1600V; 1700V; 430A IT(RMS); 500mA Holding (Max.); TO-200AB Semikron 闸流晶体管, 391A 1600V 250 (Min)mA, 3针 B 11封装 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Current - Surge | 9000A | Voltage - Supply | 1.65V |
| Voltage - Breakdown | 1600V | Current - Hold (Ih) (Max) | 500mA |
| Voltage - Peak Reverse (Max) | 1600V | Current - Average Rectified (Io) | 391A |
| Current - Peak Pulse (10/1000us) | 60mA | Current - Gate Trigger (Igt) (Max) | 250 (Min)mA |
| Voltage - Gate Trigger (Vgt) (Max) | 3 (Min)V | ||
Mechanical
| Height | 14mm | Diameter | 41.5mm |
| Mounting Type | 面板安装 | Number of Pins | 3 |
| Package Quantity | B 11 | Size / Dimension | 41.5 (Dia.) x 14mm |
Product Info
| Function | Y | Triac Type | SCR |
Environmental
| Operating Temperature | -40 °C | ||
