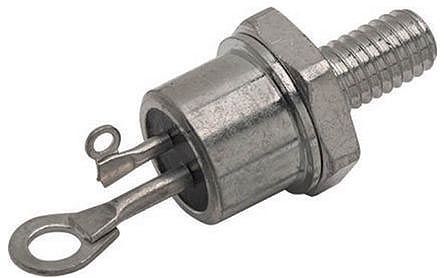

SKT 16/16 E
| Manufacturer | |
| Description | Thyristor; Stud; 1600V; 18A On-State (Avg. Max.); 1700V; 20A IT(RMS); -40; +130 Semikron 闸流晶体管, 18A 1600V 150 (Min)mA, 7针 A 46封装 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Current - Surge | 2000A | Voltage - Supply | 1.64V |
| Voltage - Breakdown | 1600V | Current - Hold (Ih) (Max) | 250mA |
| Voltage - Peak Reverse (Max) | 1600V | Current - Average Rectified (Io) | 18A |
| Current - Peak Pulse (10/1000us) | 20mA | Current - Gate Trigger (Igt) (Max) | 150 (Min)mA |
| Voltage - Gate Trigger (Vgt) (Max) | 3 (Min)V | ||
Mechanical
| Width | 20mm | Height | 30mm |
| Length | 93mm | Mounting Type | 螺纹安装 |
| Number of Pins | 7 | Package Quantity | A 46 |
| Size / Dimension | 93 x 20 x 30mm | ||
Product Info
| Function | Y | Triac Type | SCR |
Environmental
| Operating Temperature | -40 °C | ||
