PFSM.100.2
| Manufacturer | |
| Description | PTC Resettable Fuse 80A 30VDC Blister T/R Resettable Fuses PTC 15V I hold 1.1A PFSM PTC SICHERUNG SMT 1.1 A FUSE PTC 1.10A 30V FST-TRIP SMD Resettable Fuses - PPTC PTC 15V I hold 1.1A PFSMPTCFUSESMT1.1A |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2000 | Lead Time | 70 Days |
| Unit Pack | 2000 | Other Names | 486-1177-1 |
| Subcategory | PTC Resettable Fuse | Product Category | Resettable Fuses |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | CSA/UL |
Electrical
| Resistance | 0.24 Ohms | Voltage - Max | 15 VDC |
| Current - Trip (It) | 2.2 A | Current Rating (Max) | 80 A |
| Resistance Tolerance | 0.12 Ohm | Voltage - Input (Min) | 30 Vdc |
| Delay Time - Propagation | 0.5@8A s | Current - Hold (Ih) (Max) | 1.1 A |
| Voltage - DC Reverse (Vr) (Max) | 15 V | ||

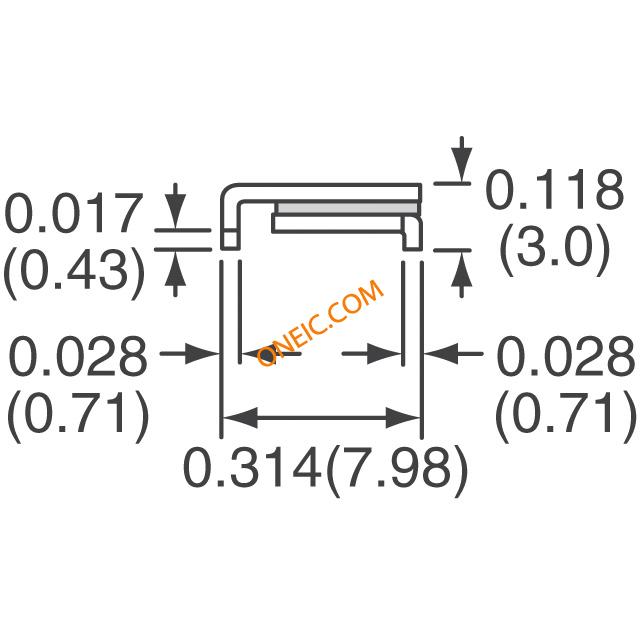

Mechanical
| Width | 3 mm | Height | 3 mm |
| Length | 7.98 mm | Weight | 0.014815 oz |
| Packaging | Blister Tape and Reel | Mounting Style | SMD/SMT |
| Package / Case | 2-SMD | Size / Dimension | 7.98 mm L x 3 mm W |
| Termination Style | SMD/SMT | ||
Product Info
| Type | Resettable Fuses | Series | PFSM |
| Manufacturer | Schurter | ||
Environmental
| Time to Trip | 0.5s | Operating Temperature | - 40 C to + 85 C |
| Power Dissipation @ Temperature Rise | 1.7 W | ||
