5500.2228
| Manufacturer | |

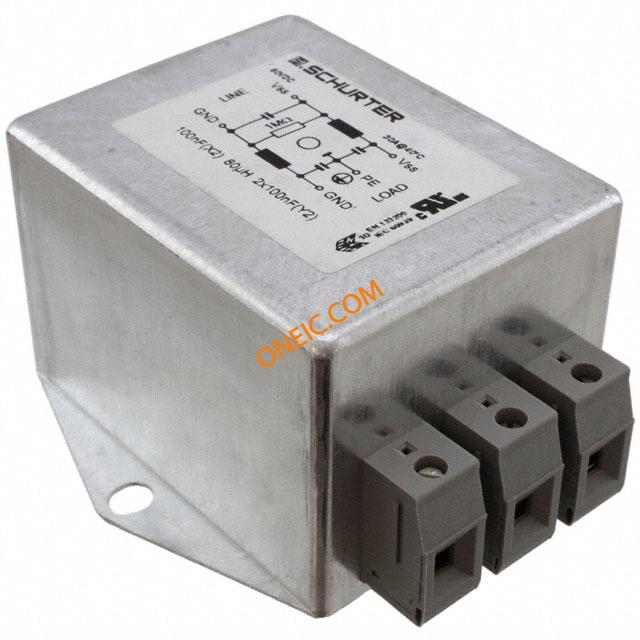

| Description | Power Line Filter 0.1MHz to 30MHz 30A 80VDC Terminal Block Flange Mount EINBAUFILTER M 1ST 1P 30A DC FILTER LINE POWER STD 30A SCREW FMEB 30A DC Filter Srew Mounting AC Power Line Filters EINBAUFILTER M 1ST 1P 30A DC BLOCK FILTER M 1ST 1P 30A DC BLOCKFILTERM1ST1P30ADC Mains filter 1-phase 30 A 80 VDC, 5500.2228, Schurter Schurter FMEB 系列 30A 80 V 直流 螺丝安装 RFI 滤波器 , 带螺丝，插片接端 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10 | Lead Time | 49 Days |
| Unit Pack | 10 | Subcategory | Power Line Filter |
| Product Category | AC Power Line Filters | Standard Package | Bulk |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Approval Agency | cULus, ENEC, VDE |
Electrical
| Current | 30A | Frequency | 0.1 to 30 MHz |
| Inductance | :0.08mH | Capacitance | :0.1µF |
| Filter Type | DC | Voltage Rating | 43 V, 80 V |
| Inductance Range | :80µH | Voltage - Rated DC | 43V, 80V |
| Current Rating (Max) | 30 A | Voltage - Input (Min) | 80 Vdc |
Mechanical
| Depth | 71mm | Width | :43mm |
| Height | 43mm | Length | 88mm |
| Weight | 9.347600 oz | Termination | Terminal Block |
| Mounting Type | Flange Mount | Connector Type | :Screw |
| Mounting Style | Chassis | Size / Dimension | 88 x 71 x 43mm |
| Termination Style | Terminal Block | Number of Positions | :Single |
Product Info
| Series | FMEB | Applications | General Purpose |
| Configuration | Single Stage | RF Family/Standard | 5500 |
Environmental
| Operating Temperature | -25 °C | ||
