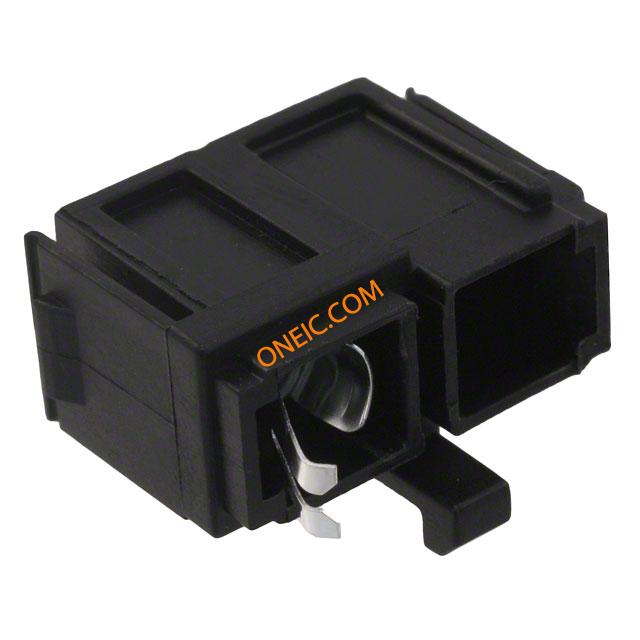

4301.1407
| Manufacturer | |
| Description | Fuse Drawer Quick Connect Snap-In AC Power Entry Modules Fusedrawer KM KEA KF No Drawer KM KEA KF KEA SCHUBLADE 1P 10A FUSE DRWR FOR PWR MOD X-SAFE 1PL Fuse Drawer KEA,1P 10A Extra Safe Fuse Drawer; 5 x 20 mm; 1; Extra safe FUSE DRAWER, FOR KM SERIES FuseDrawer;5x20mm;1;Extrasafe Fuse drawer; Fusedrawer 2; 1x fuse, Extra-Safe; fuse:5x20mm Fuse holder 1-pole, 4301.1407, Schurter Schurter Fusedrawer 2 系列 10A 手动帽盖 面板固定熔断器座 FUSE DRAWER KEA SW 1P 10A |
| Category |
Business
| MOQ | 50 | Product | Accessories |
| Lead Time | 56 Days | Unit Pack | 50 |
| Subcategory | Fuse Accessories | Product Category | AC Power Entry Modules |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Voltage - Test | :2.5V | Voltage Rating | :250V |
| Number of Poles | 1 | Current Rating (Max) | :10A |
| Connector - Voltage Input | DD11, DD12, DD21, DD22, KEA, KEA-Print, KFA, KM | Load Side Connections Per Pole | :Quick Connect |
Mechanical
| Weight | 0.112877 oz | Mounting Type | Snap-In |
| Terminal Type | :Quick Connect | Mounting Style | Snap In |
| Package / Case | :Thermoplastic UL94V-0 | Connector Usage | fuse drawer |
| Fuseholder Type | :Fuse Drawer | Material Finish | :- |
| Package Quantity | 50 | Primary Material | FuseDrawers |
| Termination Style | Quick Connect | Color - Connectors | :Black |
| Material - Housing & Prism | :Thermoplastic UL94V-0 | ||
Product Info
| Spg | 50 | Type | Fuse Drawer |
| Series | 4301 | Fuse Size | :5mm x 20mm |
| Fuse Type | 5x20mm | Product Type | FingergripandExtra-Safe |
| Accessory Type | Fuseholder, Voltage Selector | Adapter Series | Fusedrawer 2 |
| Number of Units | 1 | RF Family/Standard | 4301 |
| Number of Batteries Included | :1 | For Use With/Related Products | DD11, DD12, DD21, DD22, KEA-Print, KFA, KMF |
Environmental
| NEMA Frame Size | :IP140 | Operating Temperature | :70°C |
Documents & Media
Similar Parts
4301.5014
schurter
Power Entry Module Filtered M 3 POS 250VAC 6A Fuse ST 1 Port KFA G-STECKER-KOMBI MIT FILTER 6A MOD PWR ENT 1POS HLDR 6A QC PNL Module; Power Entry; 1; 125/250 VAC; 6 A; 0.5 mA (Max.) @ 250 V/60 Hz; Black AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A INLET FILTER, IEC, C14, KFA, 6A Module,PowerEntry;1;125/250VAC;6A;0.5mA(Max.)@250V/60Hz;Black Power inlet with filter 6 A 250 VAC, 4301.5014, Schurter
KMF1.1293.11
schurter
Power Entry Module Filtered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port KMF G-STECKER-KOMBI MIT FILTER 10A M5 MOD PWR MED FLTR 10A 1PL QC PNL AC Power Entry Modules KMF PWR ENTRY MODUL W. FILTER 10A M5 KMFPOWERENTRYMODULEW.FILTER10AM5
KMF1.1291.11
schurter
Power Entry Module Filtered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port KMF G-STECKER-KOMBI MIT FILTER 10A MOD PWR STD FLTR 10A 1PL QC PNL power entry module with filter 1 polle AC Power Entry Modules 10A 2P SW/1P FUSE 10A/250VAC No/Drawer INLET FILTER, IEC, C14, KMF, 10A powerentrymodulewithfilter1polle Power inlet with filter 10 A 250 VAC, KMF1.1291.11, Schurter
KMF1.1223.11
schurter
Power Entry Module Filtered M 3 POS 250VAC 2A Switch/Fuse ST 1 Port KMF G-STECKER-KOMBI MIT FILTER 2A M5 MOD PWR MED FILTER 2A 1PL QC PNL AC Power Entry Modules KMF PWR ENTRY MODUL W. FILTER 2A M5 KMFPOWERENTRYMODULEW.FILTER2AM5
4301.5015
schurter
Power Entry Module Filtered M 3 POS 250VAC 10A Fuse ST 1 Port KFA G-STECKER-KOMBI MIT FILTER 10A MOD PWR ENT 1POS HLDR 10A QC PNL Module; Power Entry; 1; 125/250 VAC; 10 A; 0.5 mA (Max.) @ 250 V/60 Hz; Black AC Power Entry Modules KFA 1-POLE 10A POWER ENTRY MODULE Module,PowerEntry;1;125/250VAC;10A;0.5mA(Max.)@250V/60Hz;Black Power inlet with filter 10 A 250 VAC, 4301.5015, Schurter
4301.0502
schurter
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse ST 1 Port KEA G-STECKER-KOMBI 10A MODULE PWR ENTRY SNAP-IN Module; Pwr Entry;Appliance Inlet;Snap-In Mt;Quick Conn.;10A;250VAC;50Hz AC Power Entry Modules SNAP-IN 2-POLE 10A INLET, IEC, C14, KEA, 10A Module,PwrEntry;ApplianceInlet;Snap-InMt;QuickConn.;10A;250VAC;50Hz Connector: IEC 60320,AC mains; KEA; C14 (E),2x fuse; socket; male
4301.3203
schurter
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse RA 1 Port KEA G-STECKER-KOMBI 10A MOD PWR ENTRY SNAP 2MM PNL MNT AC Power Entry Modules KEA PWR ENTRY MODUL 10A KEAPOWERENTRYMODUL10A

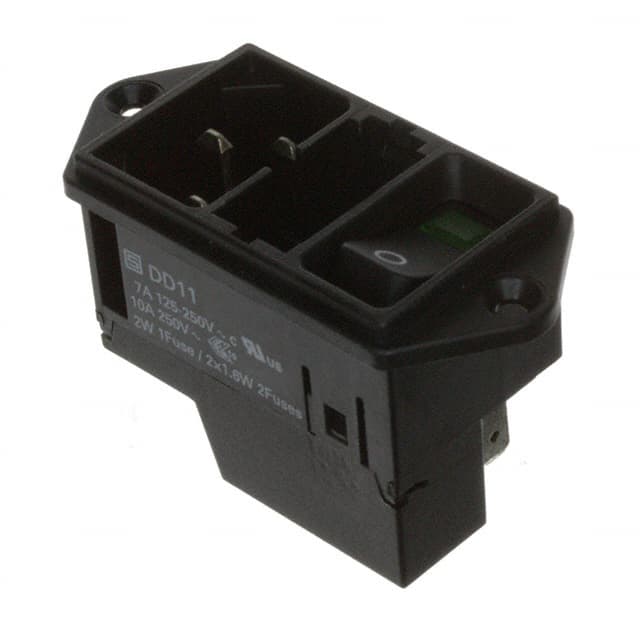

DD11.0114.1111
