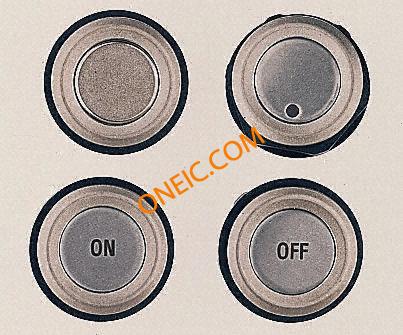

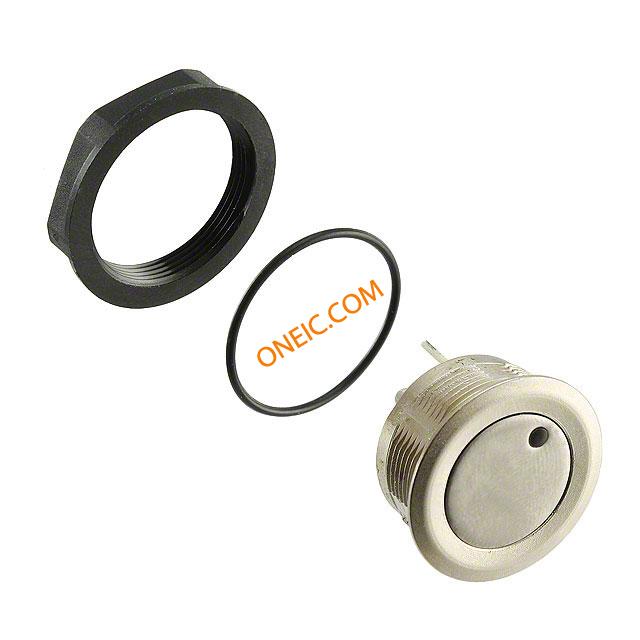

1241.2856
| Manufacturer | |
| Description | Electromechanical Switch Data Vandal-Proof Mechanical Switch N.O. SPST 0.125A SWITCH PUSH SPST-NO 0.125A 48V Green LED vandal resistant switch Pushbutton Switches 19mm Grn spot illum Mechanical N.O. zinc PUSHBUTTON SWITCH, MOM, GRN PUSHBTNMCS19ILL.GREEN Switch: vandal resistant; 1-position; SPST-NO; 0.05A/24VDC; IP65 Push-button Switch, vandal proof 19 mm 48 VDC 125 mA 1 make contact (NO), 1241.2856, Schurter Schurter 常开 按钮开关, 0.125 A@ 48 V 直流 |
| Category |
Business
| MOQ | 10 | Lead Time | 70 Days |
| Unit Pack | 10 | Subcategory | Switch Push Button |
| Product Category | Pushbutton Switches | Standard Package | Bulk |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365011 | ||
Electrical
| Circuit | SPST-NO | Backlight | green |
| Voltage Rating | 48V | Switch Function | Off-Mom |
| Switching Voltage | OFF-(ON) | Contact Resistance | 150mΩ |
| Current Rating (Max) | 125mA (DC) | Current - Max/Contact | :125mA |
| Switch Function/Rating | :(Not Applicable) | Voltage - Supply (Min) | :4VDC |
| Contact Rating (Current) | 0.125 A @ 48 V dc | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :48V | Illumination Voltage (Nominal) | 2.1 VDC |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC | ||
Mechanical
| Shape | flat | Width | :21.5mm |
| Length | :24.9mm | Weight | 0.275137 oz |
| Diameter | :21.5mm | Packaging | Tray |
| Body Color | silver | Lead Style | for soldering |
| Contact Form | SPDT | Actuator Type | Round, Button, Flush |
| Body Material | zinc alloy | Mounting Type | Panel Mount, Front |
| Stroke Length | :0.4mm | Terminal Type | :Solder Lug |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Plating - Body | nickel | Operating Force | :3.7N |
| Panel Thickness | :1mm | Housing Material | Zinc Die Cast, Nickel Plated |
| Package Quantity | 10 | Size / Dimension | see |
| Termination Style | Solder Lug | Depth Behind Panel | :8.8mm |
| Height Above Board | :1.0mm | Illumination Color | Green |
| Panel Cutout Shape | :19mm | Number of Positions | :1000000 |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | Ø19mm |
| Contact Layout, Typical | NO | Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Illumination Type, Color | LED, Green | Contact Material - Plating | silver plated |
| Torque - Rated (oz-in / mNm) | 3.7N | ||
Product Info
| Spg | 10 | Type | Data Vandal-Proof Mechanical Switch |
| Series | MCS 19 | Features | Tactile Feedback |
| Switch Type | vandal resistant | Illumination | LED |
| Electrical Life | 1,000,000 Cycles | Number of Units | 1 |
| Industry Aliases | 1241.2856.000 | Contacts Configuration | SPST-NO |
Environmental
| Seal Rating | Sealed | Mechanical Life | 1,000,000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -25 °C |
