点击放大查看
6600.3300.21
| Manufacturer | |
| Description | V-LOCK PWR OUTLET SCREW-ON 6600 G-STECKDOSE 10A 70°C Inlet;V-Lock;Screw-On;15A;250VAC;60Hz;Black;-25to70Degc Connector: IEC 60320,AC mains; C13 (F), V-lock; socket; female Flush-type appliance inlet C13 Screw mounting, 6600.3300.21, Schurter |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Unit Pack | 50 |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Protection Features | I |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 250V |
| Voltage Rating | 250V AC | Number of Poles | L + N + PE |
| Current Rating (Max) | 10A | Load - Max Switching | 10 A/250 VAC |
Mechanical
| Weight | 0.01 kg | Mounting Type | Panel Mount, Screw Hole |
| Connector Type | Receptacle, Female Sockets | Mounting Style | flange (2 holes), for panel mounting |
| Connector Style | IEC 320-C13 | Fuseholder Type | Drawer Not Required |
| Housing Material | Thermoplastic | Package Quantity | 50 |
| Connector - Cable | socket | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Color - Connectors | black | Number of Positions | 3 |
Product Info
| Spg | 50 | Number of Units | 1 |
| Assembly Configuration | Screw mounting | ||
Environmental
| Operating Temperature | +70 °C | ||
Similar Parts

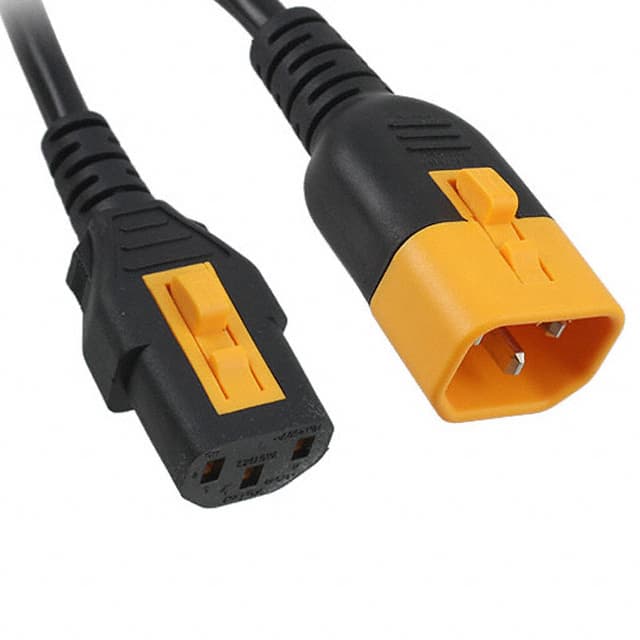

6051.2037
Schurter Inc
JUMPER CORDSET 10A 0.6M V-LOCK Verbindungskabel 10A 0.6m, V-Lock JumpercordsetIEC32010A0.6m,V-Lock Cable; IEC C13 female, IEC C14 male; 0.6m; with locking; black
$31.2637
Details

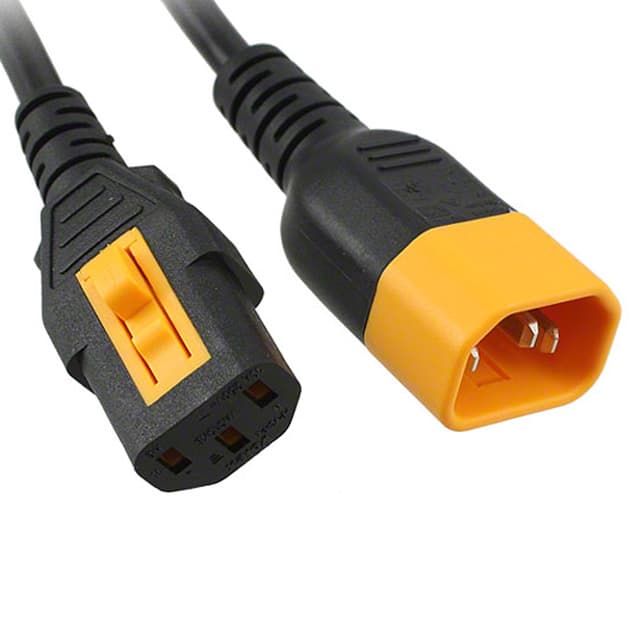

6051.2067
Schurter Inc
JUMPER CORDSET 10A 1.5M V-LOCK Verbindungskabel 10A 1.5m, V-Lock JumpercordsetIEC32010A1.5m,V-Lock Cable; IEC C13 female, IEC C14 male; 1.5m; with locking; black
$39.7746
Details
