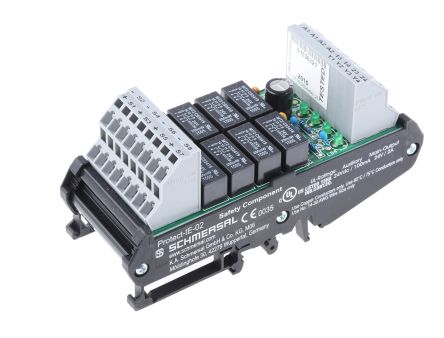

PROTECT-IE-02
| Manufacturer | |
| Description | PROTECT IE02 Safety Relay Input Expander EXPANDER, INPUT PROTECT-IE 输出模块, 6 输出, 24 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Tariff No | 85371099 | Approval Agency | :UL Recognised |
| Safety Category | EN 60947-5-1, EN ISO 13849-1, IEC 61508 | ||
Electrical
| Power - Rated | 1.7 W | Voltage - Supply | 24 V dc |
| Number of Channels | 2 | Switch Function/Rating | :(Not Available) |
| Contact Rating (Current) | 2 A | Contact Rating @ Voltage | 24 V dc |
| Connector - Voltage Input | :(Not Available) | Current - Average Rectified (Io) | :75mA |
Mechanical
| Depth | 61mm | Width | 48mm |
| Length | 126mm | Weight | 0.14 |
| Material | :GRP | Terminal Type | Cage Clamp |
| Mounting Style | DIN Rail Mount | Size / Dimension | 126 x 48 x 61 mm |
| Actuator Style/Size | :- | ||
Product Info
| Control/Display Type | 28.8 V ac/dc | Number of Safety Outputs | 0 |
Environmental
| Operating Temperature | +55°C | ||
