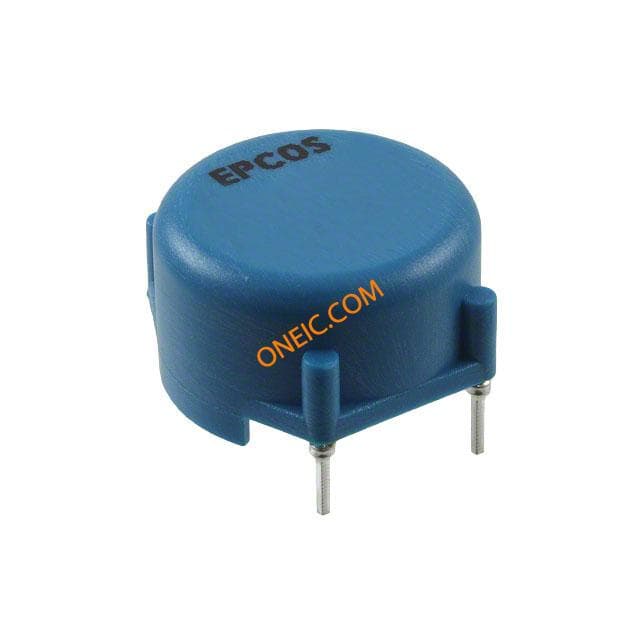

RN114-1-02
| Manufacturer | |
| Description | Common Mode Filters / Chokes RN114-1/02 Common Mode Chokes Dual 15mH 10kHz 1A Thru-Hole CHOKE COMPENSATED 15MH 1A HORZ CHOKE, COM/ASYM MODE, 2X15MH, 1A CURRENTCOMPENSATED1ASINGLEPHASECHOKE,PINCONNECTION Schaffner RN 系列 15 mH -30 → +50% 电流补偿扼流圈, 1A Idc, 375mΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 84 Days |
| Subcategory | Common Mode Chokes | Product Category | Common Mode Filters / Chokes |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Part Status | 290-193 | Approval Agency | :UL, VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Current | 1A | Core Type | :Common / Asymmetrical |
| Tolerance | - 30 %, + 50 % | Inductance | 15 mH |
| Filter Type | Power Line | Range deg/s | :SCHAFFNER - RN Series |
| Test Frequency | 10 kHz | Voltage - Test | :1500V |
| Voltage Rating | 250VAC | Inductance Range | :+50%, -30% |
| Current Rating - DC | :1A | DC Resistance (DCR) | 375 mOhm |
| Voltage - Breakdown | 1.5kVAC | Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | :0.375ohm | Frequency - Self Resonant | DC to 1 kHz |
| Resistance - Initial (Ri) (Min) | 375 mOhms | ||
Mechanical
| Depth | 21.8 | Width | 22.5 mm |
| Height | 13.5 | Weight | 0.008 |
| Packaging | Tray | Shielding | Unshielded |
| Height (Max) | 0.531" (13.50mm) | Mounting Type | Through Hole |
| Number of Pins | :4 | Package / Case | 21.5 mm x 22.5 mm x 13.2 mm |
| Length - Overall | 22.8 | Size / Dimension | 22.5 mm W x 21.5 mm L x 13.2 mm H |
| Termination Style | Through Hole | Dimensions - Overall | :22.5mm x 21.5mm x 13.2mm |
Product Info
| Type | Current Compensated Chokes | Series | RN |
| Configuration | Dual | Number of Lines | 2 |
| Industry Aliases | RN 114-1-02, RN 114-1/02, RN114-1/02 | For Use With/Related Products | RN114-1/02 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
