9G0812H101
| Manufacturer | |
| Description | DC Fan Ball Bearing 12V 0.9A 10.8W 5700RPM 80CFM 49dB Flange Mount Fans Fan 80x38mm 12VDC Hi-Perf Tach AXIAL FAN, 80MM, 12VDC, 900mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Lead Time | 68 Days |
| Subcategory | Blowers and Fans | Part # Aliases | 1509750 96M1745 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 84145920 | Rad Hardened | No |
Electrical
| Noise | 49 dBA | Speed | Clockwise |
| Frequency | Not Required Hz | Input Range | 7V to 13.8V |
| Noise Figure | 49 dB | Power - Rated | 10.8 W |
| Voltage Rating | 12V | Current - Output | 0.9 |
| Current - Supply | 0.9 A | Voltage - Supply | 12 V |
| Current Rating (Max) | :900mA | ||
Mechanical
| Depth | 80 mm | Height | 38 mm |
| Weight | 0.168 | Air Flow | 80.51 CFM |
| Diameter | Not Required mm | Packaging | Bulk |
| Flow (CFM) | :2.28m /min | Flow (SCFM) | :80.5cu.ft/min |
| Termination | Lead Wire | Bearing Type | Ball |
| Mounting Type | Flange Mount | Mounting Style | Flange |
| Housing Material | Plastic | Length - Overall | 80 mm |
| Maximum Pressure | 0.687inH2O | Size / Dimension | 80 mm x 80 mm x 38 mm |
| Termination Style | Wire Leads | ||
Product Info
| Type | Axial Fans | Series | G |
| Function | DC | ||
Environmental
| Operating Temperature | -10C to 70C | Operating Temperature - Junction | 70C |
Similar Parts

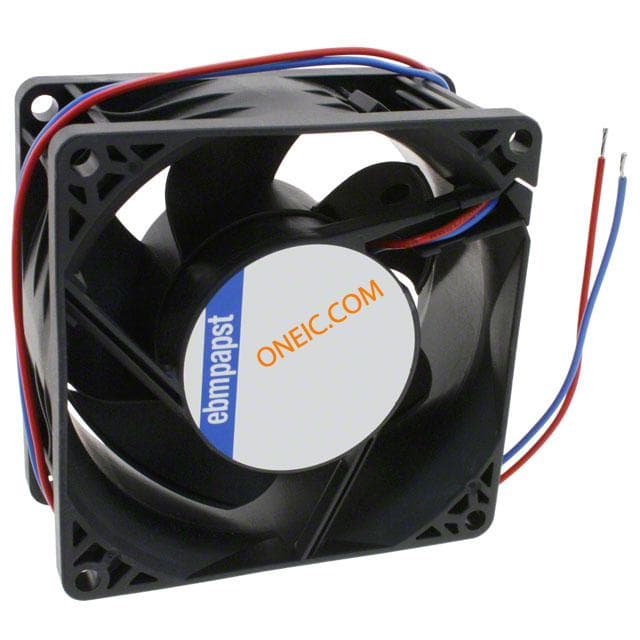

8212JN
