点击放大查看

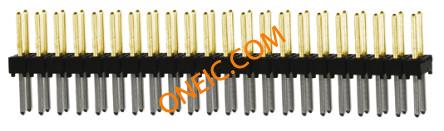

TSW-122-08-L-D
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 44 POS 2.54mm Solder ST Thru-Hole CONN HEADER 44POS .100" DL GOLD Samtec TSW Series 2.54mm Pitch 44 Way 2 Row Straight PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT VERT, 44WAY Samtec TSW 系列 2.54mm节距 44路 (2排) 直 引脚管座, 焊接端接, 7.6A , 通孔 |
| Category |
Business
| Other Names | SAM1040-22 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Electrical
| Voltage Rating | 550 V ac | Current Rating (Max) | 7.6A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.01 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | :2.54mm |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Number of Contacts | 44 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 44 |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TSW | Number of Positions Loaded | All |
