TSM-103-01-S-SV
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST SMD Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST SMD Bulk CONN HEADER 3POS .100" SNGL SMD HEADER, 2.54MM, SMT, 3WAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Current Rating (Max) | 7 | Voltage - Input (Min) | 475VAC |
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 9.65 |
| Weight | 0.06 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Surface Mount |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 7.62 |
| Number of Contacts | 3 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 3 | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | :TSM | Number of Positions Loaded | All |
Documents & Media
Similar Parts
SSM-103-S-SV
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST SMD Tube CONN RCPT .100" 3POS SNGL VERT
BCS-103-L-S-TE
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT 3POS .100" SNGL VERT SOCKET, 2.54MM, VERTICAL, 1X3WAY
SSW-103-01-T-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL TIN SOCKET, 2.54MM, 1X3WAY
BCS-103-L-S-HE
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole Bulk CONN RCPT 3POS .100" SNGL HORZ SOCKET, 2.54MM, HORIZONTAL, 1X3WAY
SSQ-103-02-G-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL GOLD
SSW-103-02-T-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL TIN
ESW-103-12-T-S
samtec inc.
Conn Elevated Socket SKT 3 POS 2.54mm Solder ST Thru-Hole CONN SOCKET .100" 3POS PCB SNGL
ESQ-103-33-G-S-002
samtec inc.
Conn Elevated Socket SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT 3POS .100" GOLD
SSW-103-01-G-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL GOLD Samtec SSW Series 2.54mm 3 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, SINGLE, 3WAY Samtec SSW 系列 3路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
SSQ-103-03-G-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL GOLD RECEPTACLE, 2.54MM, SINGLE ROW, 3WAY
SSQ-103-01-G-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL GOLD Samtec SSQ Series 2.54mm 3 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, SINGLE, 3WAY Samtec SSQ 系列 3路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
SSW-103-01-S-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL GOLD
SSQ-103-01-S-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 3POS SNGL GOLD
SSW-103-02-S-S
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole
SSM-103-L-SV
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder ST SMD Tube CONN RCPT .100" 3POS SNGL VERT SOCKET, 2.54MM, SMT, 1X3WAY
SSW-103-02-G-S-RA
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 3POS R/A SGL AU Samtec SSW Series 2.54mm 3 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, R/A SINGLE, 3WAY Samtec SSW 系列 3路 直角 2.54mm节距 通孔 印刷电路板插座, 板对板
SSW-103-02-S-P-RA
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole CONN RECP .100 3POS R/A SINGLE

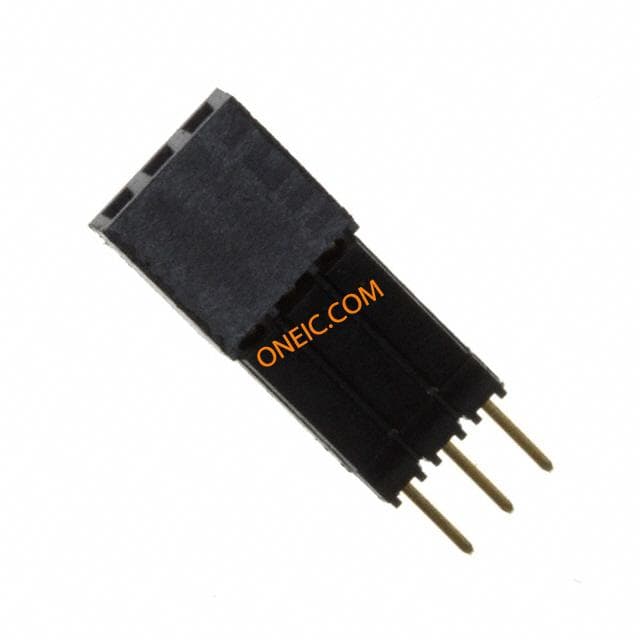

ESQ-103-44-G-S
samtec inc.
Conn Elevated Socket SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT 3POS .1" GOLD SOCKET, 2.54MM, VERTICAL THT, 3WAY
SSQ-103-02-T-S-RA
samtec inc.
Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 3POS SGL R/A TIN

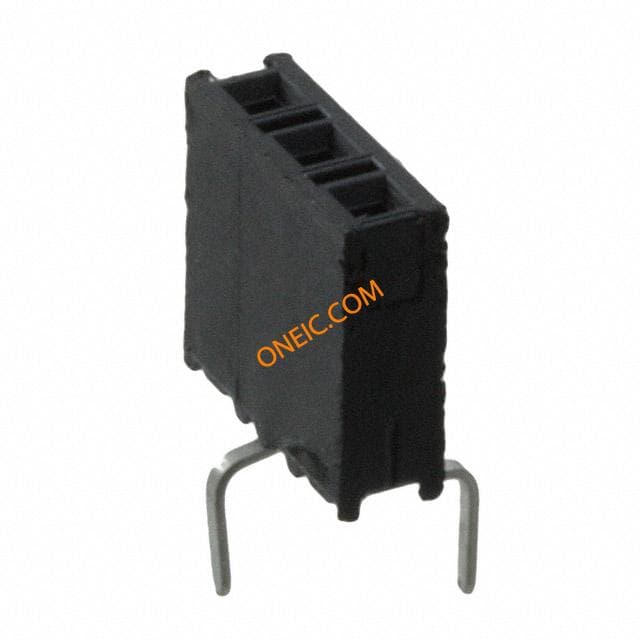

BCS-103-L-S-PE
