TMM-110-01-G-S-SM
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 10 POS 2mm Solder ST SMD Tube CONN HEADER 10POS SNGL 2MM SMD Samtec TMM Series 2mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3.9A HEADER, 2MM, SINGLE SMD, 10WAY Samtec TMM 系列 2mm节距 10路 (1排) 直 引脚管座, 焊接端接, 3.9A , 表面安装 |
| Category |
Business
| Other Names | SAM1168-10 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500 V ac | Current Rating (Max) | 3.9A |
| Voltage - Input (Min) | 500VAC | ||
Mechanical
| Color | Black | Depth | 1.97 |
| Pitch | 2 mm | Height | 5.97 |
| Weight | 0.001 | Packaging | Tube |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 20 | Color - Connectors | :Black |
| Number of Contacts | 10 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 10 | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TMM | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts
MMS-110-02-T-SH
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder RA SMD Tube CONN RCPT 2MM 10POS SGL HORZ SMD
SMM-110-02-S-S
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 10POS SGL GOLD SMD Receptacle 2mm low profile 10 way RECEPTACLE, 2MM, SINGLE, 10WAY Samtec SMM 系列 10路 直 2mm节距 表面贴装 印刷电路板插座, 板对板
SQT-110-01-L-S-RA
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM 10POS SGL R/A PCB Receptacle 2mm horizontal 10way RECEPTACLE, 2MM, R/A, 10WAY Samtec SQT 系列 10路 直角 2mm节距 通孔 印刷电路板插座, 板对板
SQT-110-01-L-S
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder ST Thru-Hole Tube CONN RCPT 2MM 10POS SGL VERT PCB Receptacle 2mm vertical 10way RECEPTACLE, 2MM, VERT, 10WAY
MMS-110-02-L-SH
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder RA SMD Tube CONN RCPT 2MM 10POS SGL HORZ SMD SOCKET, 2.0MM, HORIZ, 1X10WAY
MMS-110-01-L-SH
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM 10POS SGL HORZ PCB SOCKET, 2.0MM, HORIZ, 1X10WAY
SQT-110-01-LM-S-RA
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM 10POS R/A
SMM-110-02-F-S-P
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 10POS SMD
MMS-110-02-T-SV
samtec inc.
Conn Socket Strip SKT 10 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 10POS SGL VERT SMD

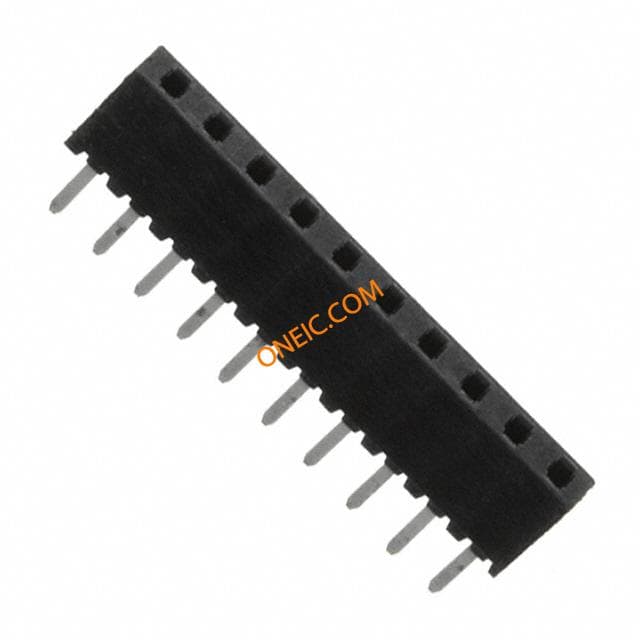

MMS-110-01-L-SV
