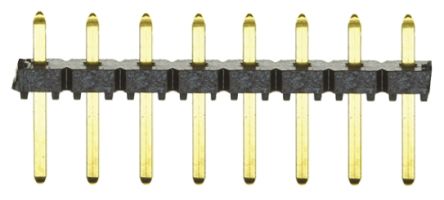

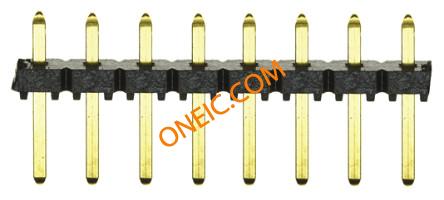

TLW-108-05-G-S
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Samtec TLW Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A HEADER, 2.54MM, SINGLE, 8WAY Samtec TLW Flex Stack 系列 2.54mm节距 8路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Depth | 2.48 | Pitch | 2.54 mm |
| Height | 4.19 | Weight | 0.001 |
| Termination | Solder | Lead Spacing | :2.54mm |
| Housing Color | Black | Mounting Type | Straight |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 20.32 | Color - Connectors | :Black |
| Number of Contacts | 8 | Contact Termination | :Through Hole Vertical |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TLW | ||
Environmental
| Operating Temperature | :125°C | ||
