TFM-120-02-S-D-LC
| Manufacturer | |
| Description | Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube CONN HEADER 40POS 1.27MM GLD SMD HEADER, 1.27MM, SMT, 2X20WAY |
| Category |
Business
| Other Names | Q4086262 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :SAMTEC - TFM Series | Current Rating (Max) | 5/Contact |
| Voltage - Input (Min) | 350VAC | ||
Mechanical
| Color | Black | Depth | 5.72 |
| Pitch | 1.27 mm | Height | 5.72 |
| Weight | 0.0013 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 28.58 | Number of Contacts | 40 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 40 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Board Lock | Number of Positions Loaded | All |
Documents & Media
Similar Parts
SFMC-120-02-S-D
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube CONN .05" SURFACE 40POS SMT SOCKET, 1.27MM, SMT, 40 WAY
SFM-120-02-S-D-A
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube CONN RECEPT 40POS .050" SMT Samtec SFM Series 1.27mm 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board RECEPTACLE, 1.27MM, SMT, 40WAY Samtec SFM 系列 2行 40路 直 1.27mm节距 表面贴装 印刷电路板插座, 板对板
SFM-120-L2-S-D-A-P-TR
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD T/R CONN RECEPT 40POS .050" STRAIGHT
SFM-120-03-S-D-A
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube CONN RECEPT 40POS .050" STRAIGHT SOCKET, 1.27MM, 2X20WAY
SFM-120-02-S-D-LC-P
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube CONN RECEPT 40POS .050" SMT
SFMC-120-01-S-D
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST Thru-Hole Tube CONN .05" SURFACE 40POS T/H SOCKET, 1.27MM, 40 WAY
SFM-120-02-S-D-LC-TR
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD T/R CONN RECEPT 40POS .050" SMT
SFM-120-02-S-D-LC-K
samtec inc.
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube CONN RECEPT 40POS .050" SMT

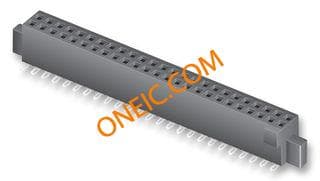

SFM-120-02-S-D-LC
