TFM-110-02-S-D
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN HEADER 20POS .050" SMT GOLD HEADER, 1.27MM, SMT, 2X10WAY BOARD-BOARD CONN, HEADER, 20WAY, 2ROW |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 5/Contact | Voltage - Input (Min) | 350VAC |
Mechanical
| Color | Black | Depth | 5.72 |
| Pitch | 1.27 mm | Height | 5.72 |
| Weight | 0.0007 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 15.88 | Number of Contacts | 20 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 20 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | :TFM | Number of Positions Loaded | All |
Documents & Media
Similar Parts
SFMC-110-L3-S-D
samtec inc.
Conn Socket Strip SKT 20 POS 1.27mm Solder ST Thru-Hole Tube CONN .05" SURFACE 20POS STRAIGHT SOCKET, 1.27MM, 20 WAY

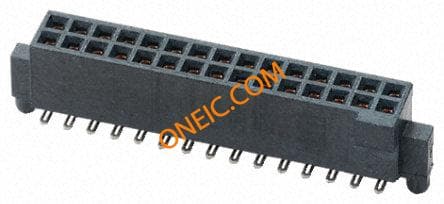

SFM-110-02-S-D-A
