TCSD-12-01-N
| Manufacturer | |
| Description | Conn IDC Connector SKT 24 POS 2mm IDT RA Cable Mount Tube CONN SOCKET 24 POS 2MM GOLD SOCKET, IDC, 2MM, 24WAY |
| Category |
Business
| Other Names | Q3099531 | Standard Package | Bulk |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :SAMTEC - TCSD Series | Contact Resistance | :10mohm |
| Current Rating (Max) | :1A | ||
Mechanical
| Color | Black | Depth | 4 |
| Pitch | 2 mm | Height | 5.08 |
| Weight | 0.002 | Packaging | Tube |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDT |
| Contact Type | Female Socket | Lead Spacing | :2mm |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Polyester | Length - Overall | 28 |
| Cable Termination | IDC | Number of Contacts | 24 |
| Contact Termination | :IDC / IDT | Number of Positions | 24 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Features | Feed Through, Polarizing Key | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
TMM-112-01-G-D
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole CONN HEADER 24POS DUAL 2MM T/H
TMM-112-01-L-D
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole Bulk CONN HEADER 24POS DBL 2MM T/H HEADER, 2.0MM, 2X12WAY
TMM-112-01-T-D
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole CONN HEADER 24POS DUAL 2MM T/H HEADER, 2.0MM, 2X12WAY
TMM-112-01-S-D
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole Bulk CONN HEADER 24POS DUAL 2MM T/H
TMM-112-03-G-D
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST Thru-Hole CONN HEADER 24POS DBL 2MM T/H
TMM-112-01-S-D-SM
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST SMD Tube CONN HEADER 24POS DUAL 2MM SMD
MMT-112-01-T-DH-P-TR
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder RA SMD T/R CONN HEADER 24POS DUAL SMD
TMM-112-01-G-D-SM
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST SMD Tube CONN HEADER 24POS DUAL 2MM SMD
TMM-112-01-T-D-SM
samtec inc.
Conn Unshrouded Header HDR 24 POS 2mm Solder ST SMD Tube CONN HEADER 24POS DUAL 2MM SMD HEADER, 2.0MM, SMT, 2X12WAY
TMMH-112-01-F-D-RA-ES
samtec inc.
Conn Shrouded Header HDR 24 POS 2mm Solder RA Thru-Hole Tube CONN HEADR 24POS DBL 2MM T/H
EHT-112-01-S-D-SM-LC-K
samtec inc.
Conn Ejector Header HDR 24 POS 2mm Solder ST SMD Tube CONN HEADER .787" 24POS DUAL SMD

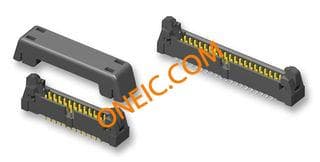

EHT-112-01-S-D-SM
