点击放大查看

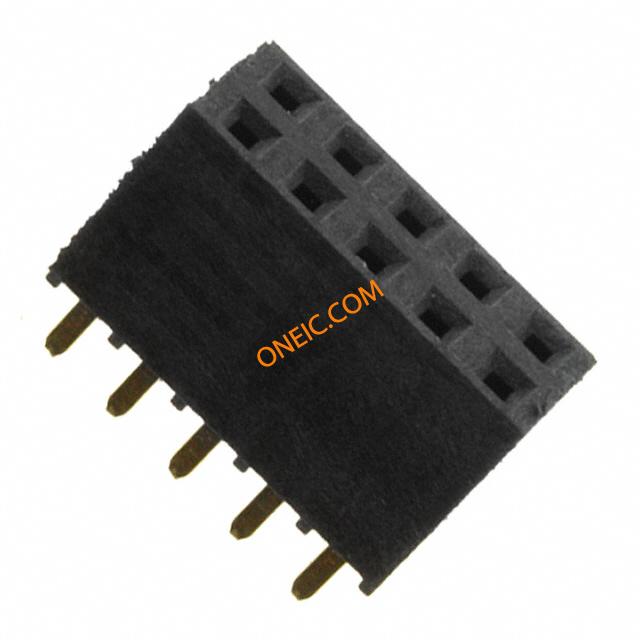

SSW-105-01-G-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 10POS DUAL GOLD Samtec SSW Series 2.54mm 10 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, THT, 10WAY Samtec SSW 系列 2行 10路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1208-05 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | :10mohm |
| Current Rating (Max) | 6.9A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.06 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Lead Spacing | :2.54mm |
| Pitch - Post | :2.54mm | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Number of Contacts | 10 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 10 |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SSW | CAD Drawing | 3D CAD Model |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
