点击放大查看

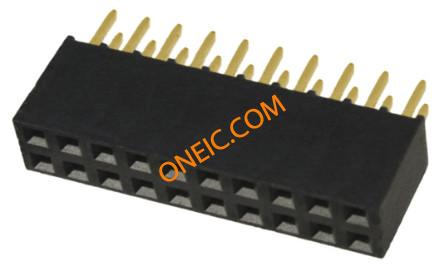

SSQ-110-01-G-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 20POS DUAL GOLD Samtec SSQ Series 2.54mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 20WAY Samtec SSQ 系列 2行 20路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1179-10 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | 10 mohm |
| Current Rating (Max) | 7.6A | Voltage - Input (Min) | 550VAC |
| Voltage - Supply (Min) | 550VAC | ||
Mechanical
| Color | Black | Depth | 4.95 mm |
| Pitch | 2.54 mm | Height | 8.51 mm |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Lead Spacing | :2.54mm |
| Pitch - Post | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 25.91 mm |
| Color - Connectors | :Black | Number of Contacts | 20 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 20 |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SSQ | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
