点击放大查看

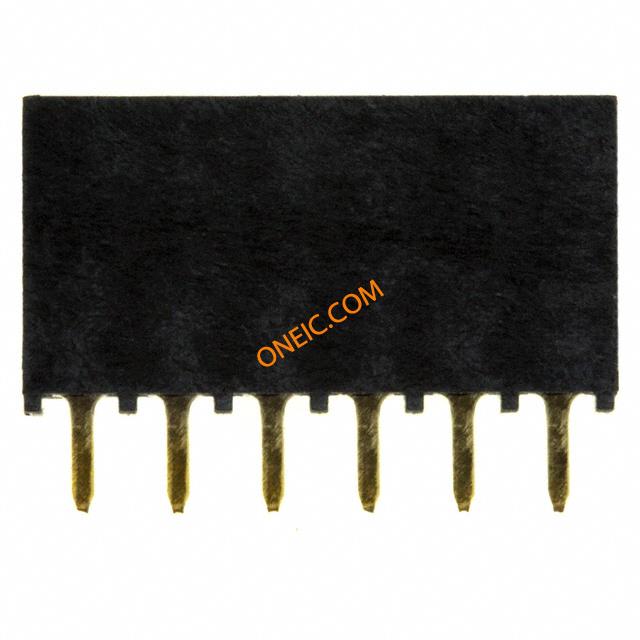

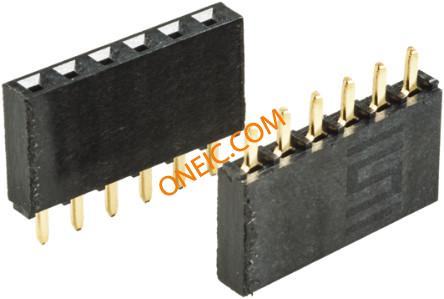

SSQ-106-01-G-S
| Manufacturer | |
| Description | Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS SNGL GOLD Samtec SSQ Series 2.54mm 6 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, SINGLE, 6WAY Samtec SSQ 系列 6路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1180-06 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | :10mohm |
| Current Rating (Max) | 7.6A | Voltage - Input (Min) | 550VAC |
Mechanical
| Color | Black | Depth | 2.41 |
| Pitch | 2.54 mm | Height | 8.51 |
| Weight | 0.001 | Packaging | Bulk |
| Termination | Solder | Contact Type | Female Socket |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 15.75 | Color - Connectors | :Black |
| Number of Contacts | 6 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 6 | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SSQ | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
