点击放大查看

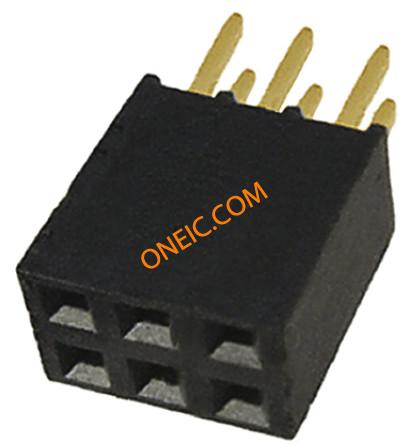

SSQ-103-01-G-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS DUAL GOLD Samtec SSQ Series 2.54mm 6 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 6WAY |
| Category |
Business
| Other Names | SAM1179-03 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | :10mohm |
| Current Rating (Max) | 7.6A | Voltage - Input (Min) | 550VAC |
Mechanical
| Color | Black | Depth | 4.95 |
| Pitch | 2.54 mm | Height | 8.51 |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Lead Spacing | :2.54mm |
| Pitch - Post | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 8.13 | Color - Connectors | :Black |
| Number of Contacts | 6 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 6 | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SSQ | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
