点击放大查看

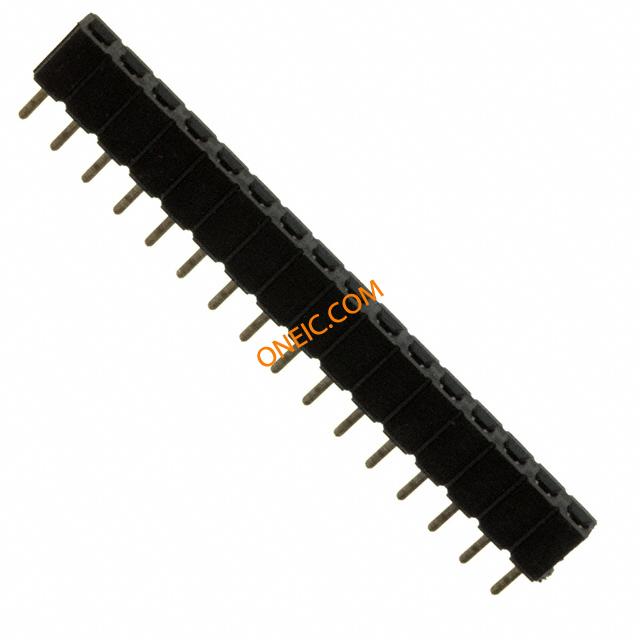

SLW-116-01-T-S
| Manufacturer | |
| Description | Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 16POS SNGL TIN SOCKET, 2.54MM, 1X16WAY |
| Category |
Business
| Other Names | SAM1093-16 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 7.1 |
| Voltage - Input (Min) | 550VAC | ||
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 4.57 |
| Weight | 0.0009 | Packaging | Bulk |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 40.64 | Height Above Board | 0.180" (4.57mm) |
| Number of Contacts | 16 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 16 | Height Stacking (Mating) | 0.240" (6.09mm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | :- | Number of Positions Loaded | All |
