点击放大查看

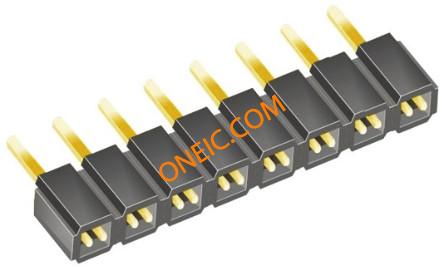

SLW-108-01-G-S
| Manufacturer | |
| Description | Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 8POS SNGL GOLD Receptacle 2.54mm low profile 8 way RECEPTACLE, 2.54MM, SINGLE, 8WAY Samtec SLW 系列 8路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1089-08 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | :10mohm |
| Current Rating (Max) | 7.1A | Voltage - Input (Min) | 550VAC |
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 4.57 |
| Weight | 0.001 | Packaging | Bulk |
| Termination | Solder | Lead Spacing | :2.54mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 20.32 |
| Color - Connectors | :Black | Height Above Board | 0.180" (4.57mm) |
| Number of Contacts | 8 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 8 | Contact Finish Thickness | 20µin (0.51µm) |
| Height Stacking (Mating) | 0.240" (6.09mm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SLW | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
