SLW-103-01-G-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 6POS DUAL GOLD |
| Category |
Business
| Other Names | SAM1088-03 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 7.1 A |
| Voltage - Input (Min) | 550VAC | Voltage - Supply (Min) | 550VAC |
Mechanical
| Color | Black | Depth | 4.95 mm |
| Pitch | 2.54 mm | Height | 4.57 mm |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 7.62 mm |
| Height Above Board | 0.180" (4.57mm) | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Finish Thickness | 20µin (0.51µm) |
| Height Stacking (Mating) | 0.240" (6.09mm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55C to 125C | ||
Documents & Media
Similar Parts
TSW-103-24-L-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 6POS .100" DBL HEADER, 2.54MM, THT VERT, 6WAY
TSW-103-05-L-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL GOLD HEADER, 2.54MM, THT VERT, 6WAY
TSW-103-06-G-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL GOLD HEADER, 2.54MM, THT VERT, 6WAY
TSW-103-17-L-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL GOLD HEADER, 2.54MM, THT VERT, 6WAY
TSW-103-23-S-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 6POS .100" DUAL GOLD
TSW-103-14-T-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 6POS .100" DUAL TIN HEADER, 2.54MM, THT VERT, 6WAY
TSW-103-08-L-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 6POS .100" DUAL GOLD Samtec TSW Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT VERT, 6WAY Samtec TSW 系列 2.54mm节距 6路 (2排) 直 引脚管座, 焊接端接, 7.6A , 通孔
TLW-103-05-T-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER .100" 6POS DUAL TIN
TSW-103-06-S-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL GOLD
TSW-103-08-S-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL GOLD
TSW-103-14-S-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL GOLD
TSW-103-06-T-D
samtec inc.
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole CONN HEADER 6POS .100" DUAL TIN HEADER, 2.54MM, THT VERT, 6WAY

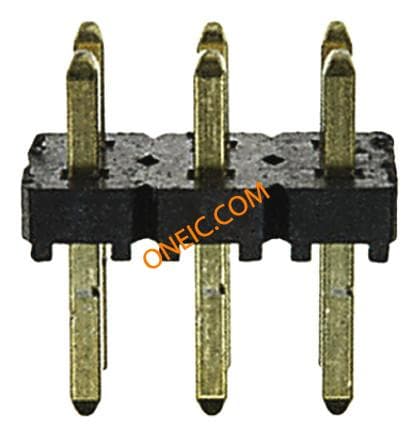

TLW-103-05-G-D
