点击放大查看
SLW-102-01-S-S
| Manufacturer | |
| Description | Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 2POS SGL 30GOLD SOCKET, 2.54MM, 1X2WAY |
| Category |
Business
| Other Names | SAM1091-02 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 3 A |
| Voltage - Input (Min) | 550VAC | Voltage - Supply (Min) | 550VAC |
Mechanical
| Color | Black | Depth | 2.54 mm |
| Pitch | 0.100" (2.54mm) | Height | 4.57 mm |
| Weight | 0.0002 | Packaging | Bulk |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 5.08 mm |
| Height Above Board | 0.180" (4.57mm) | Number of Contacts | 2 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 2 |
| Contact Finish Thickness | 30µin (0.76µm) | Height Stacking (Mating) | 0.240" (6.09mm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | :- | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
Documents & Media
Similar Parts
TSW-102-07-G-S
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 2POS .100" SGL GOLD HEADER, 2.54MM, THT VERT, 2WAY
TSW-102-22-L-S-RA
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole CONN HEADER 2POS .100" SNGL R/A HEADER, 2.54MM, THT, R/A, 2WAY
HMTSW-102-07-G-S-240
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER 2POS .100" T/H GOLD
HTSW-102-07-TM-S
samtec inc.
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole CONN HEADER 2POS .1" T/H

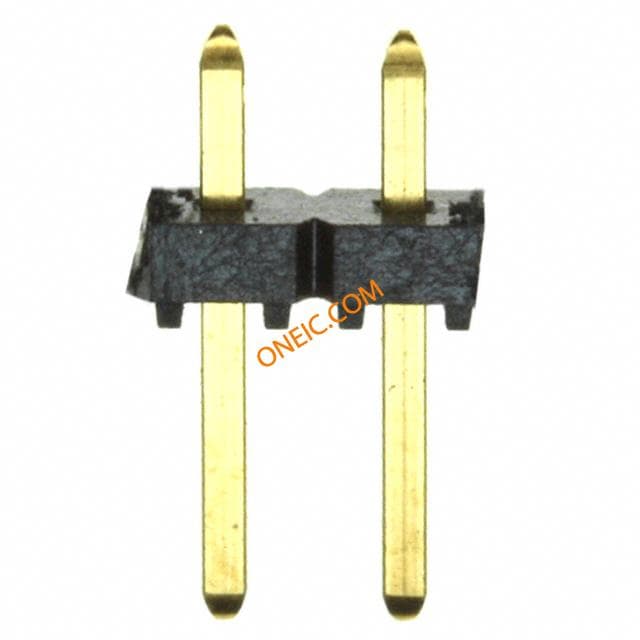

TLW-102-05-G-S
