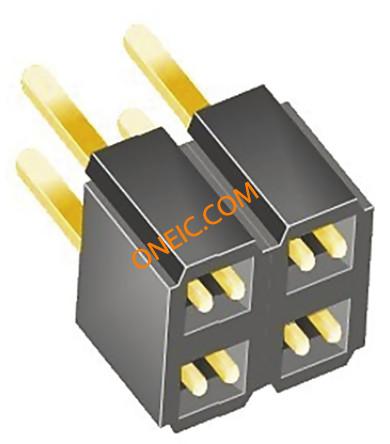

SLW-102-01-G-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 4POS DUAL GOLD Receptacle 2.54mm low profile 2+2 way RECEPTACLE, 2.54MM, DUAL, 4WAY Samtec SLW 系列 2行 4路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1088-02 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | :10mohm |
| Current Rating (Max) | 7.1A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Lead Spacing | :2.54mm | Pitch - Post | :2.54mm |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Color - Connectors | :Black |
| Height Above Board | 0.180" (4.57mm) | Number of Contacts | 4 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 4 |
| Contact Finish Thickness | 20µin (0.51µm) | Height Stacking (Mating) | 0.240" (6.09mm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SLW | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
