点击放大查看

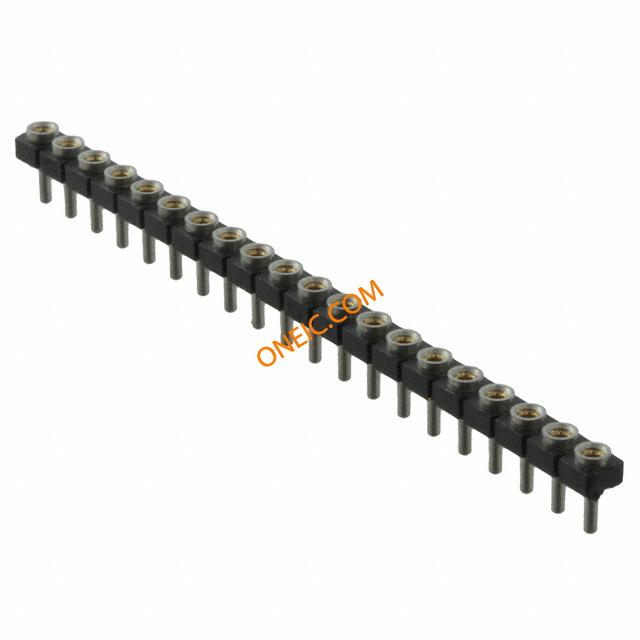

SL-120-T-12
| Manufacturer | |
| Description | Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 20POS GOLD PCB Receptacle 2.54mm PCB micro-socket 20way RECEPTACLE, 2.54MM, PCB, 20WAY Samtec SL 系列 20路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1107-20 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | :10mohm | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 2.41 |
| Length | :2.41mm | Weight | 0.001 |
| Packaging | Bulk | Termination | Solder |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Beryllium Copper | Housing Material | Polyester |
| Length - Overall | 50.8 | Color - Connectors | :Black |
| Height Above Board | 0.095" (2.41mm) | Number of Contacts | 20 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 20 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SL | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
