HTSW-108-07-T-D
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole CONN HEADER 16POS .1" T/H HEADER, 2.54MM, VERTICAL THT, 16WAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.1 | Packaging | Tube |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | :2.54mm |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Nickel | Number of Rows | 2 |
| Contact Material | :Phosphor Bronze | Number of Contacts | 16 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 16 |
| Contact Length - Mating | 0.230" (5.84mm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | :HTSW | Number of Positions Loaded | All |
Documents & Media
Similar Parts
ESQ-108-14-G-D
samtec inc.
Conn Elevated Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 16POS GOLD DUAL .100" SOCKET, 2.54MM, 2X8WAY, ELEVATED
ESQ-108-13-G-D
samtec inc.
Conn Elevated Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 16POS .100" DUAL GOLD SOCKET, 2.54MM, 2X8WAY, ELEVATED
SSQ-108-03-G-D-RA
samtec inc.
Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 16PS DL R/A GOLD

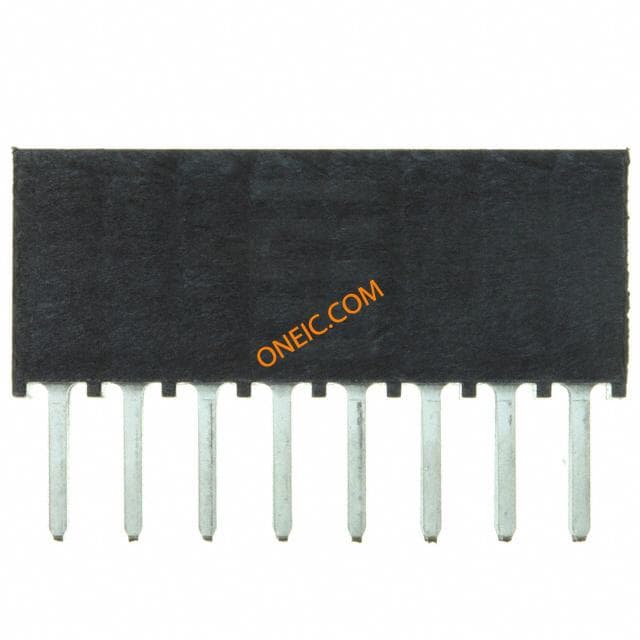

SSQ-108-02-T-D
