FTSH-110-01-L-DV-EJ
| Manufacturer | |
| Description | Conn Ejector Header HDR 20 POS 1.27mm Solder ST SMD Tube CONN UNSHROUDED HDR 20POS .05" |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1.75/Contact | ||
Mechanical
| Color | Black | Depth | 5.64 |
| Pitch | 1.27 mm | Height | 11.18 |
| Packaging | Tube | Row Spacing | 0.050" (1.27mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Surface Mount |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch Lock/Eject Hooks | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 28.47 | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
SFMC-110-L3-S-D
samtec inc.
Conn Socket Strip SKT 20 POS 1.27mm Solder ST Thru-Hole Tube CONN .05" SURFACE 20POS STRAIGHT SOCKET, 1.27MM, 20 WAY
FLE-110-01-G-DV
samtec inc.
Conn Socket Strip SKT 20 POS 1.27mm Solder ST SMD Tube CONN RCPT .05" 20POS DUAL SMD Samtec FLE Series 1.27mm 20 Way 2 Row Straight PCB Socket Surface Mount Board to Board RECEPTACLE, 1.27MM, SMD, 20WAY Samtec FLE 系列 2行 20路 直 1.27mm节距 表面贴装 印刷电路板插座, 板对板
FLE-110-01-G-DV-K-TR
samtec inc.
Conn Socket Strip SKT 20 POS 1.27mm Solder ST SMD T/R CONN SKT 1.27MM 20POS DUAL SMD
CLP-110-02-G-D
samtec inc.
Conn Socket Strip SKT 20 POS 1.27mm Solder ST SMD Tube CONN RCPT 20POS DUAL .05" SMD SOCKET, 1.27MM, VERTICAL SMT, 20WAY
CLP-110-02-F-D
samtec inc.
Conn Socket Strip SKT 20 POS 1.27mm Solder ST SMD Tube CONN RCPT 20POS DUAL .05" SMD RECEPTACLE, 1.27MM, SMT, 20WAY

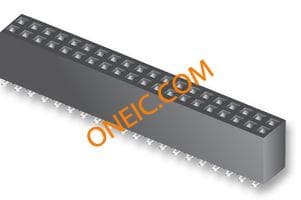

SFMC-110-02-S-D
