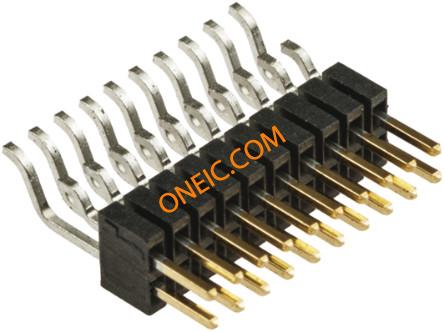

FTSH-110-01-L-DH
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 20 POS 1.27mm Solder RA SMD Tube CONN HEADR 20POS DL .05" R/A SMD Header 1.27mm horizontal SMT 10+10way HEADER, 1.27MM, R/A, SMD, 20WAY Samtec FTSH 系列 1.27mm节距 20路 (2排) 直角 引脚管座, 焊接端接, 1.75A , 表面安装 |
| Category |
Business
| Other Names | SAM1160-10 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 1.75A | ||
Mechanical
| Color | Black | Depth | 10.89 |
| Pitch | 1.27 mm | Height | 3.43 |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | :1.27mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 12.7 | Color - Connectors | :Black |
| Number of Contacts | 20 | Contact Termination | :Solder |

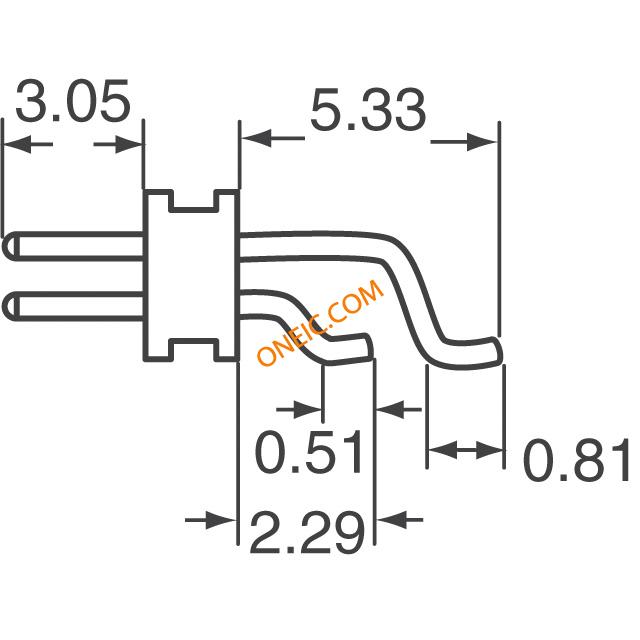

| Number of Positions | 20 | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | FTSH | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
