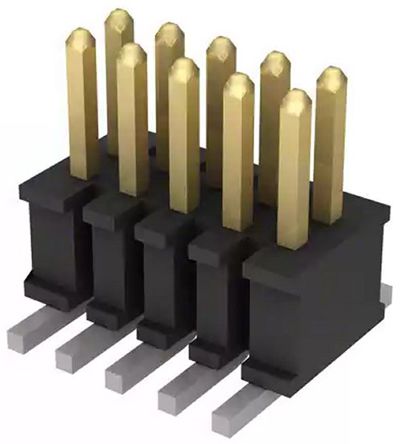

FTSH-105-01-L-DV
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube CONN HEADER 10POS DUAL .05" SMD Samtec FTSH Series 1.27mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1.75A HEADER, 1.27MM, SMD, 10WAY Samtec FTSH 系列 1.27mm节距 10路 (2排) 直 引脚管座, 焊接端接, 1.75A , 表面安装 |
| Category |
Business
| Other Names | SAM1161-05 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 1.75A | ||

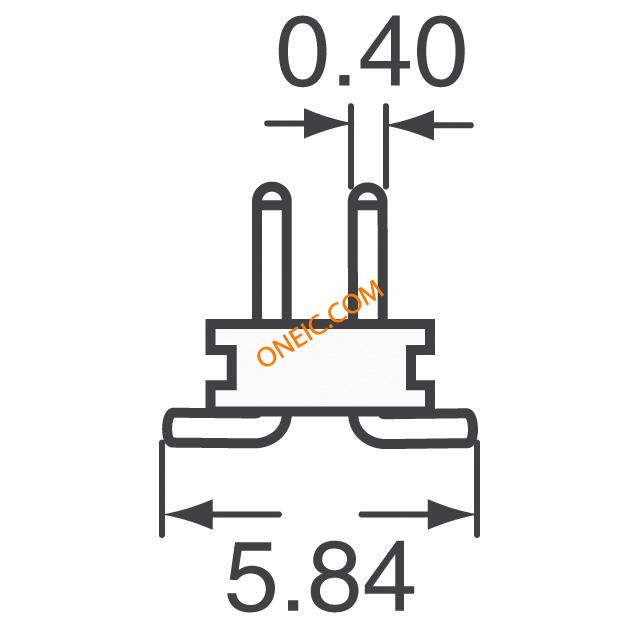

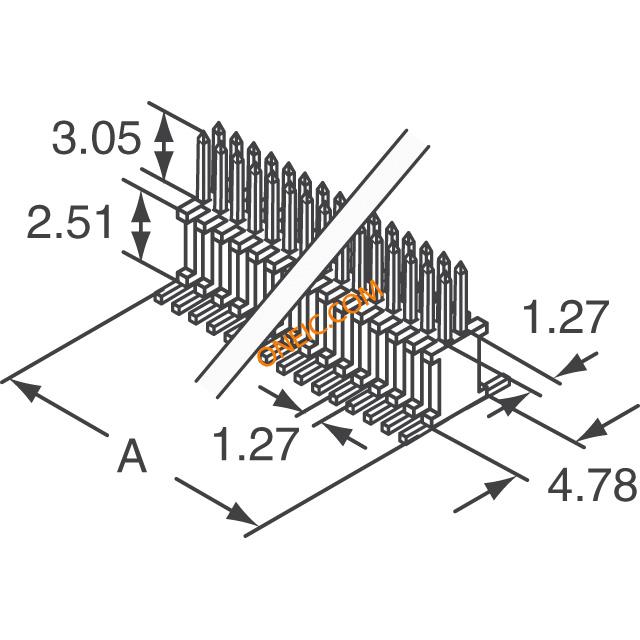

Mechanical
| Color | Black | Depth | 3.43 mm |
| Pitch | 1.27 mm | Height | 5.97 mm |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | :1.27mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 6.35 mm |
| Color - Connectors | :Black | Number of Contacts | 10 |
| Contact Termination | :Solder | Number of Positions | 10 |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | FTSH | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
