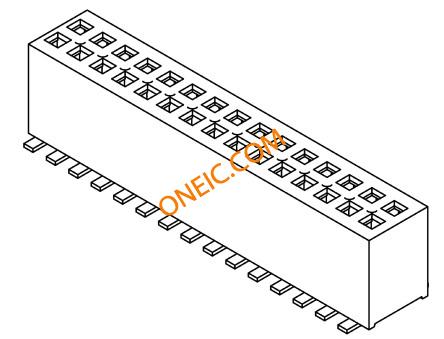

FLE-120-01-G-DV
| Manufacturer | |
| Description | Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD Tube CONN RCPT .05" 40POS DUAL SMD Samtec FLE Series 1.27mm 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board RECEPTACLE, 1.27MM, SMD, 40WAY Samtec FLE 系列 2行 40路 直 1.27mm节距 表面贴装 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1226-20 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | :15mohm | Current Rating (Max) | 1.75A |
Mechanical
| Color | Black | Depth | 3.33 |
| Pitch | 1.27 mm | Height | 4.55 |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Female Socket | Lead Spacing | :1.27mm |
| Pitch - Post | :1.27mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 25.51 | Color - Connectors | :Black |
| Number of Contacts | 40 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 40 | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | FLE | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
