点击放大查看

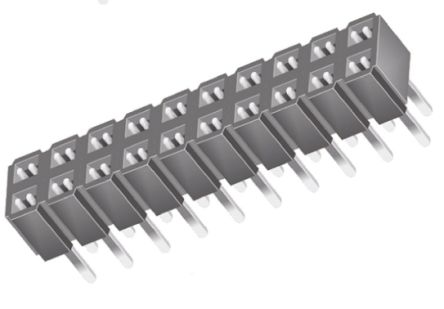

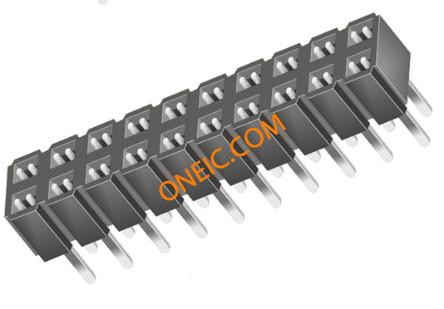

CES-110-01-T-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 20POS .100" DUAL TIN Samtec CES Series 2.54mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 20WAY Samtec CES 系列 2行 20路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Lead Time | 30 Days | Other Names | SAM1086-10 |
| Subcategory | Not Specified | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 333 V ac | Contact Resistance | 10 |
| Current Rating (Max) | 1A | Voltage - Input (Min) | 333VAC |
Mechanical
| Color | Black | Depth | 5.59 |
| Pitch | 2.54 mm | Height | 5.08 |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 25.4 | Height Above Board | 0.200" (5.08mm) |
| Number of Contacts | 20 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 20 | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | CES | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :105°C | ||
