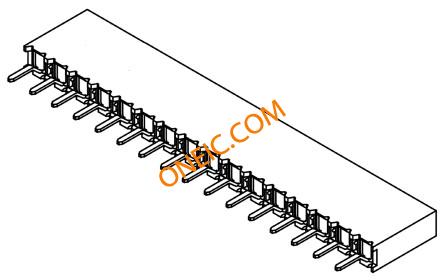

BCS-116-L-S-TE
| Manufacturer | |
| Description | Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 16POS .100" SNGL VERT Samtec BCS Series 2.54mm 16 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 16WAY Samtec BCS 系列 16路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1011-16 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 475 V ac | Current Rating (Max) | :3A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Width | :5.08mm | Weight | 0.001 |
| Packaging | Tube | Termination | Solder |
| Lead Spacing | :2.54mm | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Height Above Board | 0.290" (7.37mm) |
| Number of Contacts | 16 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 16 | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | BCS | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
