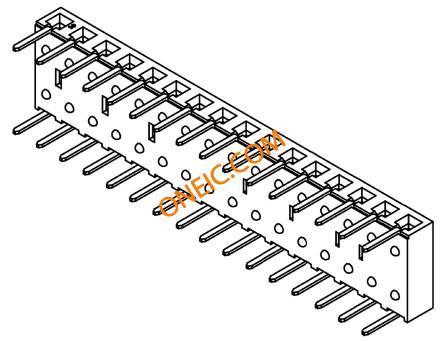

BCS-116-L-S-HE
| Manufacturer | |
| Description | Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 16POS .100" SNGL HORZ Samtec BCS Series 2.54mm 16 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 16WAY |
| Category |
Business
| Other Names | SAM1009-16 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 450 V ac | Current Rating (Max) | 5.9A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Width | :7.87mm | Weight | 0.001 |
| Packaging | Tube | Termination | Solder |
| Lead Spacing | :2.54mm | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Height Above Board | 0.125" (3.17mm) |
| Number of Contacts | 16 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 16 | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | BCS | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
