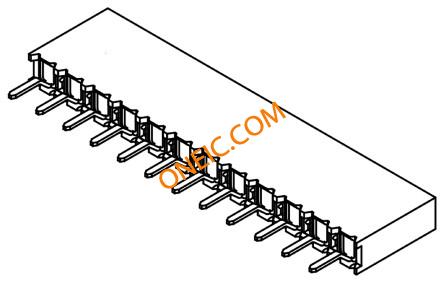

BCS-112-L-S-TE

Manufacturer	Samtec, Inc.
Description	Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 12POS .100" SNGL VERT Samtec BCS Series 2.54mm 12 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 12WAY Samtec BCS 系列 12路直 2.54mm节距通孔印刷电路板插座, 板对板
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Other Names

SAM1011-12

Standard Package

Bulk

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85369010

Electrical

Voltage Rating	475 V ac	Contact Resistance	10
Current Rating (Max)	:3A	Voltage - Input (Min)	475VAC

Mechanical

Color	Black	Depth	2.54
Pitch	0.100" (2.54mm)	Width	:5.08mm
Height	7.37	Weight	0.001
Packaging	Tube	Termination	Solder
Lead Spacing	:2.54mm	Housing Color	Black
Mounting Type	Through Hole	Connector Type	Receptacle
Contact Finish	Gold Over Nickel	Number of Rows	1
Contact Material	Phosphor Bronze	Housing Material	Liquid Crystal Polymer
Length - Overall	30.48	Color - Connectors	:Black
Height Above Board	0.290" (7.37mm)	Number of Contacts	12
Contact Termination	:Through Hole Vertical	Number of Positions	12
Contact Finish Thickness	10µin (0.25µm)

Product Info

Type	Socket Strip	Gender	SKT
Series	BCS	Number of Positions Loaded	All

Environmental

Operating Temperature

:125°C

Documents & Media

PDF Document

bcs.pdf

PDF Document

81213.pdf
