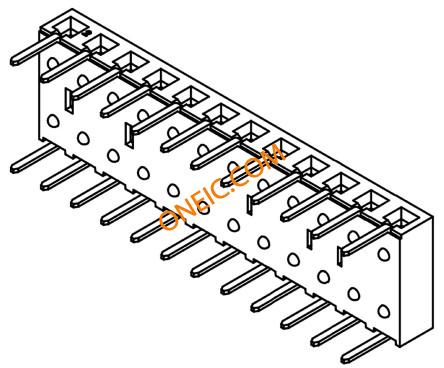

BCS-112-L-S-HE

Manufacturer	Samtec, Inc.
Description	Conn Socket Strip SKT 12 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 12POS .100" SNGL HORZ Samtec BCS Series 2.54mm 12 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 12WAY Samtec BCS 系列 12路直角 2.54mm节距通孔印刷电路板插座, 板对板
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Other Names

SAM1009-12

Standard Package

Bulk

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85369010

Electrical

Voltage Rating

450 V ac

Current Rating (Max)

5.9A

Mechanical

Color	Black	Pitch	2.54 mm
Width	:7.87mm	Weight	0.001
Packaging	Tube	Termination	Solder
Lead Spacing	:2.54mm	Mounting Type	Through Hole, Right Angle
Connector Type	Receptacle	Contact Finish	Gold Over Nickel
Number of Rows	1	Contact Material	Phosphor Bronze
Color - Connectors	:Black	Height Above Board	0.125" (3.17mm)
Number of Contacts	12	Contact Termination	:Through Hole Right Angle
Number of Positions	12	Contact Finish Thickness	10µin (0.25µm)

Product Info

Type	Socket Strip	Gender	SKT
Series	BCS	Number of Positions Loaded	All

Environmental

Operating Temperature

:125°C

Documents & Media

PDF Document

bcs.pdf

PDF Document

81213.pdf
