点击放大查看

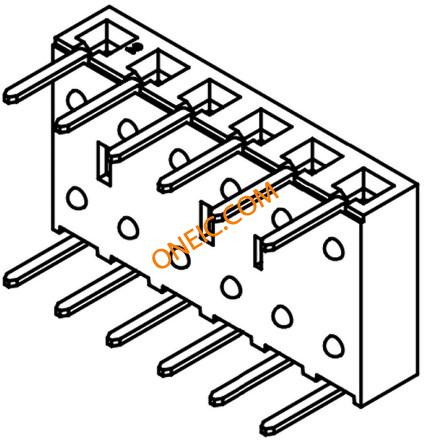

BCS-106-L-S-HE
| Manufacturer | |
| Description | Conn Socket Strip SKT 6 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 6POS .100" SNGL HORZ Samtec BCS Series 2.54mm 6 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 6WAY Samtec BCS 系列 6路 直角 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Lead Time | 30 Days | Other Names | SAM1009-06 |
| Subcategory | Not Specified | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 450 V ac | Contact Resistance | 10 |
| Current Rating (Max) | 5.9A | Voltage - Input (Min) | 450VAC |
Mechanical
| Color | Black | Depth | 8.13 |
| Pitch | 2.54 mm | Width | :7.87mm |
| Height | 3.18 | Weight | 0.001 |
| Packaging | Tube | Termination | Solder |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 15.24 | Color - Connectors | :Black |
| Height Above Board | 0.125" (3.17mm) | Number of Contacts | 6 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 6 |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | BCS | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
