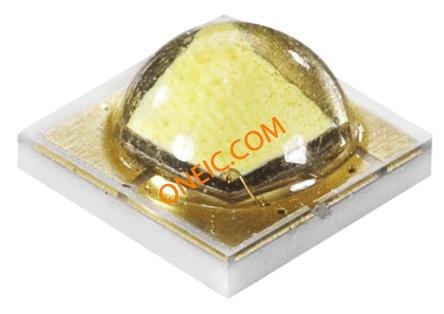

SPHWHTL3D303E6R0K3
| Manufacturer | |
| Description | LED Uni-Color White 2-Pin SMD T/R LED White 3535,5000K,min 130lm,Ra70 Samsung 白色 5000K LED , 3.3 V, 125 °视角, 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 31 Days | Subcategory | LED |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Compliant | EU RoHS | Compliant |
Electrical
| LED | 1 | Lamp Type | 透明 |
| Lamp Output | Yes | Luminous Flux | 434lm(Min) |
| Viewing Angle | 125 ° | Voltage - Supply | 3.3 V |
| LED Forward Voltage | 3.3 V | Current - Peak Pulse (10/1000us) | 1500 |
Mechanical
| Color | White | Width | 3.5 |
| LED Color | White | Packaging | Tape and Reel |
| Lamp Color | 5000K | Lens Style | Circular |
| Lens Diameter | 2.69x2.69x0.73 | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | 2 |
| Lens Style/Size | 125 ° | Material - Core | InGaN |
| Length - Overall | 3.5 | Package Quantity | SMD |
| Size / Dimension | 3.5 x 3.5 x 1.89mm | Color - Background | 5000K |
| Number of Contacts | 2 | Number of Positions | 2 |
Product Info
| Type | Uni-Color | Series | CR35H |
| Optic Shape | 圆形 | Number of LEDs | 1 |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | 85 | ||
