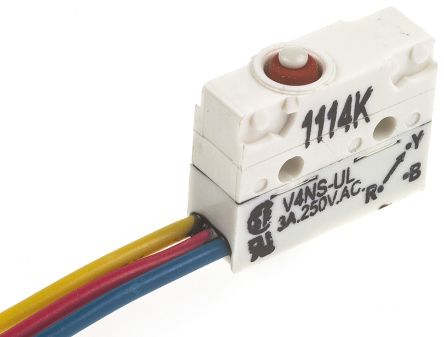

点击放大查看
V4NSUL
| Manufacturer | |
| Description | SPDT-NO/NC Plunger Microswitch, 3 A @ 250 V ac MICROSWITCH, PLUNGER, SPDT, 250VAC, 5A Microswitch; without lever; SPDT; 5A/250VAC; ON-(ON); 1-position Saia-Burgess 单刀双掷 - 常开/常闭 柱塞 微动开关, 3 A @ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 75 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | Compliant | Tariff No | 85365080 |
Electrical
| Switching Voltage | ON-(ON) | Current - Max/Contact | :5A |
| Switch Function/Rating | :(Not Available) | Contact Rating (Current) | 3 A @ 250 V ac |
| Connector - Voltage Input | :Wire Leaded | Voltage - Supply (Vcc/Vdd) | :30V |
| AC contacts rating (at resistance load) | 5 A / 250 VAC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Weight | 0.012 | Lead Style | 500mm wires |
| Size - Body | 20 x 6.45 x 10.1mm | Actuator Type | Plunger |
| Release Force | 0.3N | Terminal Type | Pre-wired |
| Operating Force | 2.5 N | Contact Material | Fine Silver |
| Package Quantity | 10 | Size / Dimension | see |
| Pitch - Connector | 5.08mm | Actuator Style/Size | :Plunger |
| Number of Positions | 1-position | Switch Actuation Level | :Snap Action |
| Contact Layout, Typical | SPDT-NO/NC | Material - Housing & Prism | Glass Fibre Reinforced Nylon |
| Torque - Rated (oz-in / mNm) | 2.5N | ||
Product Info
| Spg | 10 | Switch Type | microswitch |
| Number of Units | 1 | Switch Features | without lever |
| Contacts Configuration | SPDT | ||
Environmental
| Seal Rating | IP67 | Mechanical Life | 5000000Operations |
| Ingress Protection | IP67 | Operating Temperature | +85°C |
