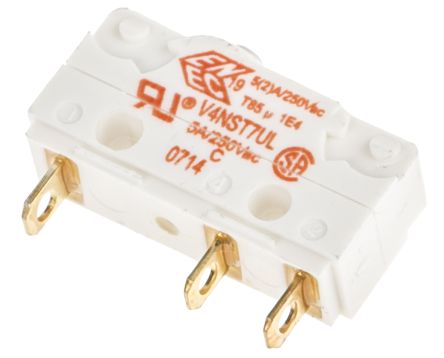

V4NST7UL
| Manufacturer | |
| Description | SPDT-NO/NC Plunger Microswitch, 5 A @ 250 V ac, 5 A @ 30 V dc MICRO SWITCH, PLUNGER, 1CO, 5A, 250V Microswitch; without lever; SPDT; 5A/250VAC; ON-(ON); 1-position Saia-Burgess 单刀双掷 - 常开/常闭 柱塞 微动开关, 5 A @ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 50 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | Compliant | Tariff No | 85365005 |
Electrical
| Switching Voltage | ON-(ON) | Switch Function/Rating | :- |
| Contact Rating (Current) | 5 A @ 250 V ac, 5 A @ 30 V dc | Voltage - Supply (Vcc/Vdd) | :30V |
| AC contacts rating (at resistance load) | 5 A / 250 VAC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Weight | 0 | Lead Style | for soldering |
| Size - Body | 20 x 6.45 x 10.1mm | Actuator Type | Plunger |
| Release Force | 0.3N | Terminal Type | Solder |
| Operating Force | 2.5 N | Contact Material | Fine Silver |
| Package Quantity | 300 | Pitch - Connector | 5.08mm |
| Actuator Style/Size | :Plunger | Number of Positions | 1-position |
| Switch Actuation Level | :Subminiature | Contact Layout, Typical | SPDT-NO/NC |
| Material - Housing & Prism | Glass Fibre Reinforced Nylon | Torque - Rated (oz-in / mNm) | 2.5N |
Product Info
| Spg | 300 | Switch Type | microswitch |
| Number of Units | 1 | Switch Features | without lever |
| Contacts Configuration | SPDT | ||
Environmental
| Seal Rating | IP67 | Mechanical Life | 5000000Operations |
| Ingress Protection | IP67 | Operating Temperature | +85°C |
