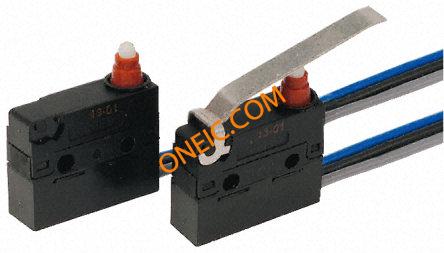

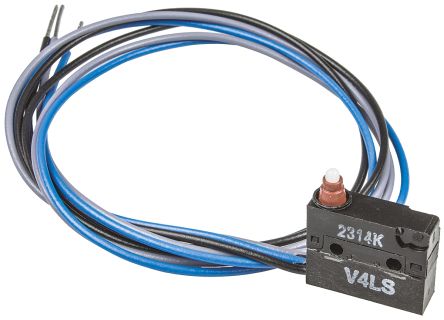

V4LS
| Manufacturer | |
| Description | SP-NO/NC Plunger Microswitch, 5 A @ 250 V ac MICROSWITCH, V4, PLUNGER Saia-Burgess SP - 常开/常闭 柱塞 咬接式微动开关, 5 A @ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 60 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | Compliant | Tariff No | 85365080 |
| Approval Agency | :CSA, UL | ||
Electrical
| Voltage - Core | :250V | Current - Output | :5A |
| Differential Travel | :0.6mm | Current - Modulation | :5A |
| Current - Max/Contact | :5A | Switch Function/Rating | :(Not Applicable) |
| Contact Rating (Current) | 5 A @ 250 V ac | Connector - Voltage Input | :Wire Leaded |
| Voltage - Supply (Vcc/Vdd) | :250V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | :20mm | Width | :6.45mm |
| Length | :16.05mm | Weight | 0.014 |
| Pretravel | :1.5mm | Overtravel | :2.2mm |
| Height (Max) | :16.05mm | Actuator Type | Plunger |
| Release Force | 0.5N | Terminal Type | Pre-wired |
| Package / Case | :Nylon (Polyamide) | Operating Force | 2.5 N |
| Contact Material | Fine Silver | Mounting Feature | :9.5mm |
| Actuator Style/Size | :Plunger | Switch Actuation Level | :Snap Action |
| Contact Layout, Typical | SP-NO/NC | Material - Housing & Prism | Glass Fibre Reinforced PA |
Product Info
| Series | :V4L | ||
Environmental
| Seal Rating | IP6K7 | Mechanical Life | 10^5Operations |
| NEMA Frame Size | :IP67 | Operating Temperature | +85°C |
