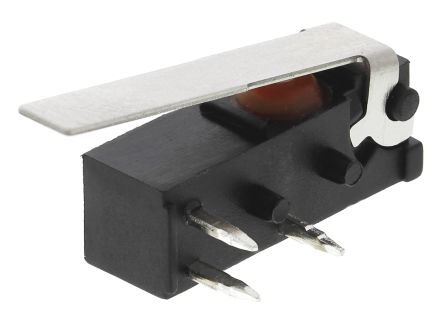

F1NST8A1
| Manufacturer | |
| Description | SP-NO/NC Lever Microswitch, 1 A @ 250 V ac Microswitch; with lever; SPDT; 1A/250VAC; ON-(ON); 1-position Saia-Burgess SP - 常开/常闭 杠杆 微动开关, 1 A @ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 50 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | Compliant | ||
Electrical
| Switching Voltage | ON-(ON) | Current Rating (Max) | 1 A @ 250 V 交流 |
| Contact Rating (Current) | 1 A @ 250 V ac | AC contacts rating (at resistance load) | 1 A / 250 VAC |
Mechanical
| Length | 18mm | Weight | 0.73 g |
| Lead Style | for PCB, angled | Size - Body | 14.5 x 4.8 x 5mm |
| Actuator Type | Lever | Holding Force | 0.09N |
| Release Force | 0.09N | Terminal Type | Through Hole |
| Connector Type | 通孔 | Operating Force | 0.6 N |
| Contact Material | Fine Silver | Housing Material | 聚酰胺 |
| Package Quantity | 100 | Size / Dimension | see |
| Pitch - Connector | 2.5x5.04mm | Number of Positions | 1-position |
| Contact Layout, Typical | SP-NO/NC | Material - Housing & Prism | PA |
| Torque - Rated (oz-in / mNm) | 2N | ||
Product Info
| Spg | 100 | Switch Type | microswitch |
| Number of Units | 1 | Switch Features | with lever |
| Contacts Configuration | SPDT | ||
Environmental
| Seal Rating | IP54 | Mechanical Life | 10^7Operations |
| Ingress Protection | IP54 | Operating Temperature | +85°C |
