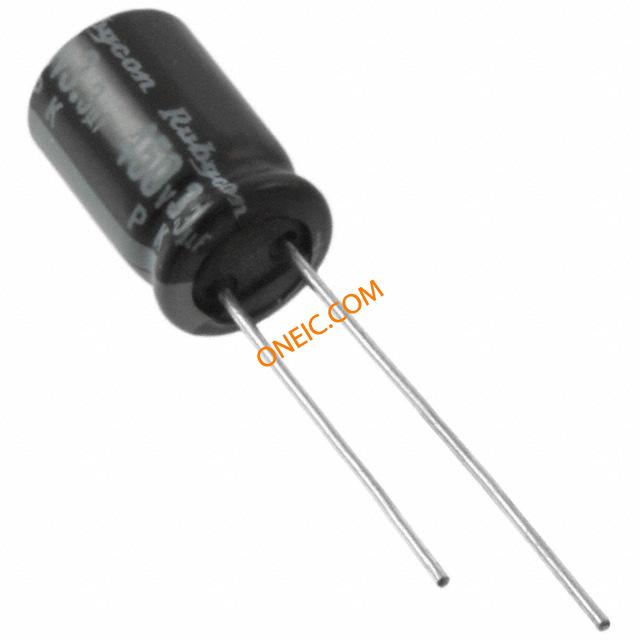

160PK10MEFC8X11.5
| Manufacturer | |
| Description | CAP ALUM 10UF 160V 20% RADIAL Rubycon 10μF ±20% 160V dc Through Hole Aluminium Electrolytic Capacitor CAP, ALU ELEC, 10UF, 160V, RAD Rubycon PK 系列 10μF 160 V 直流 铝电解电容器 , ±20%容差 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85322200 |
Electrical
| Voltage | 160 V dc | Tolerance | ±20% |
| Capacitance | 10µF | Range deg/s | :RUBYCON - PK Series |
| Voltage Rating | :160V | Current - Leakage | 0.04 CV + 100 μA (1 min); 0.02 CV + 25 μA (5 min) (CV>1000), 0.1 CV + 40 μA (1 min); 0.03 CV + 15 μA (5 min) (CV=1000) |
| Capacitance - Input | :Radial Leaded | Resistance Tolerance | -20% |
| Ripple Current @ Low Frequency | :83mA | Ripple Current @ High Frequency | 83mArms |
Mechanical
| Height | 11.5mm | Weight | 0.011 |
| Diameter | 8mm | Packaging | :- |
| Construction | Radial | Lead Spacing | :3.5mm |
| Pin Diameter | 0.6mm | Pitch - Post | 3.5mm |
| Mounting Type | Through Hole | Size / Dimension | 8 Dia. x 11.5mm |
Product Info
| Electrical Life | 2000h | ||
Environmental
| Rated Life | :2000 hours @ 85°C | Operating Temperature | +85°C |
