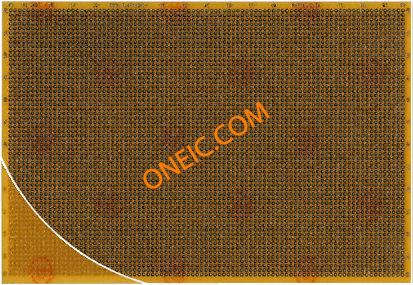

RE240-LF
| Manufacturer | |
| Description | RE240-LF, Single Sided Matrix Board FR4 With 61 x 87 1mm Holes, 2.54 x 2.54mm Pitch, 233.4 x 160 x 1.5mm PCB, EUROCARD, FR4, DOUBLE, 2.54MM PCB,RE240LF Board: universal; single sided, prototyping; W:233mm; L:160mm
sale Prototyping board FR4 epoxy resin, RE240-LF, Roth Elektronik |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85340019 |
| Material Flammability Rating | FR4 | ||
Mechanical
| Size | :160 x 233.40 mm | Pitch | 2.54 x 2.54mm |
| Width | 160mm | Length | 233.4mm |
| Weight | 0.098 | Material | :Epoxy FR4 |
| Footprint | :- | Thickness | 1.5mm |
| Height (Max) | :160mm | Hole Diameter | 1mm |
| Board Thickness | :Prototype Board | Material - Body | :FR4 Epoxy Fibreglass |
| Package Quantity | 25 | Primary Material | Epoxy Glass Fabric Laminate |
| Size / Dimension | 233.4 x 160 x 1.5mm | Number of Positions | 1 |
| Plating - Thickness | 35µm | Pad Layout Dimension | 61 x 87 |
| Contact Finish Thickness | :HAL 5 - 6 µm (hole 2 - 3 µm) | Diameter - Inside, Non-Expanded | :2.2mm |
Product Info
| Spg | 25 | Active Area | :2.20 mm Ø |
| Copper Ports | 35µm | Number of Units | 1 |
| Module/Board Type | universal | Base Product Number | single sided, prototyping |
| Matrix (Columns x Rows) | :61 x 87 | Number of Positions Loaded | :1 |
