UMZ6.8ENTR
| Manufacturer | |
| Description | Zener Diodes 6.8V SOT-353 Zener Diode DIODE ZENER QUAD 6.8V UMD5 UMZ6.8ENTR, Zener Diode, Common Anode, Quad 6.805V ±5% 0.2W 0.5μA, 5-Pin UMD DIODE, ARRAY, ZENER ROHM 4路 共阳极 齐纳二极管, 6.8V 5% 0.2 W, 5针 UMD |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | UMZ68ENTR | Product Category | Zener Diodes |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85411000 |
Electrical
| Tolerance | ±5% | Power - Max | 200mW |
| Power - Rated | 200 mW | Current - Test | 500nA @ 3.5V |
| Zener Impedance | 40 Ohms | Current - Output | :5mA |
| Voltage - Supply | 6.805 V | Diode Configuration | :Dual Common Anode |
| Impedance (Max) (Zzt) | 40 Ohm | Power Dissipation (Max) | :200mW |
| Voltage - Zener (Nom) (Vz) | :6.8V | Current - Reverse Leakage @ Vr | 0.5 uA |
| Current - Short Circuit Rating (SCCR) | 5 mA | ||
Mechanical
| Weight | 0.000029 | Packaging | Reel |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |

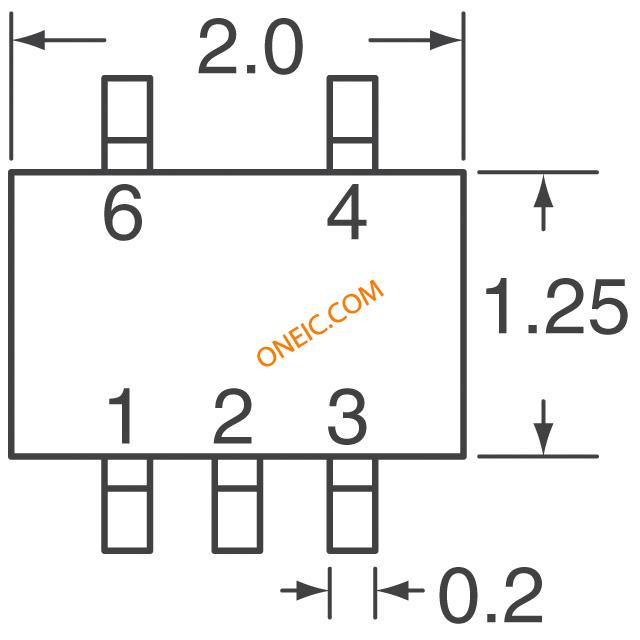

| Package / Case | SC-88A | Material Finish | :MSL 1 - Unlimited |
| Supplier Device Package | UMD5 | ||
Product Info

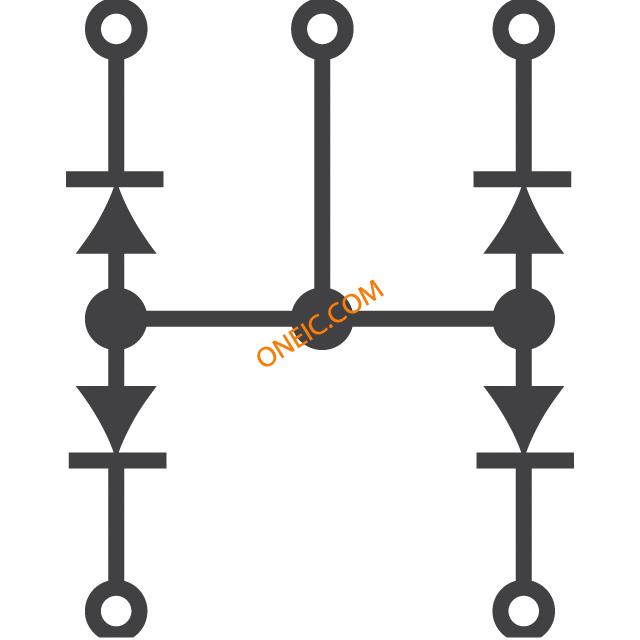

| Configuration | Quad Common Anode | ||
Environmental
| Operating Temperature | + 150 C | ||
