UMG9NTR
| Manufacturer | |
| Description | Transistors Switching - Resistor Biased DUAL NPN 50V 50MA SOT-353 Transistor TRANS PREBIAS DUAL NPN UMT5 Trans Digital BJT NPN 100mA 5-Pin UMT T/R TRANSISTOR DUAL UM5 NPN/NPN Bipolar Transistors - Pre-Biased DUAL NPN 50V 50MA SOT-353 NPN/NPN DIGITAL 10K/10K UMT5 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | UMG9NCT | Product Category | Transistors Switching - Resistor Biased |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85412100 |
| Rad Hardened | No | ||
Electrical
| Power - Max | 150mW | Power - Rated | 150 mW |
| Transistor Type | NPN | Voltage - Supply | 50V |
| Resistor - Base (R1) | 10 KOhms | Frequency - Transition | 250MHz |
| Gain Bandwidth Product | :250MHz | Power Dissipation (Max) | :150mW |
| Resistor Matching Ratio | 1 | Resistor - Emitter Base (R2) | 10k |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA | Current - Collector (Ic) (Max) | 100mA |
| Current - Collector Cutoff (Max) | 50 mA | Current - Collector Pulsed (Icm) | 100 mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 | ||
Mechanical
| Weight | 0.000035 | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |

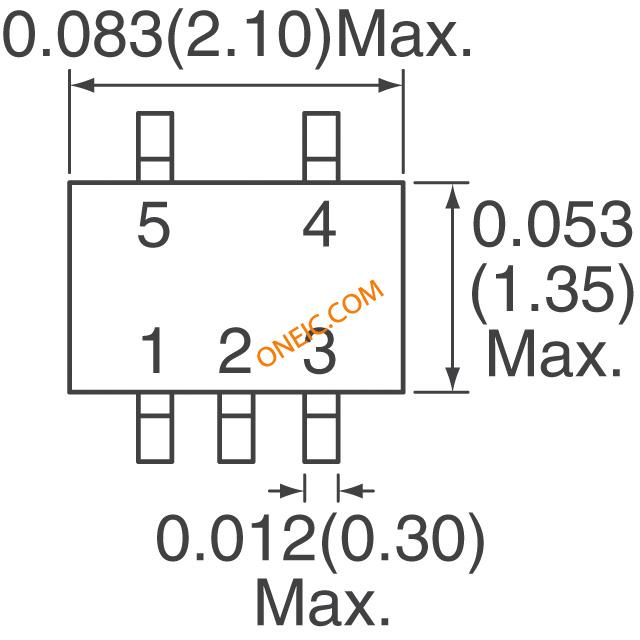

| Number of Pins | :5 | Package / Case | UM-5 |
| Package Cooled | UMT | Material Finish | :MSL 1 - Unlimited |
| Number of Positions | 5 | Supplier Device Package | UMT5 |
Product Info
| DELETED | Compliant | Configuration | Dual Common Emitter |
| Module/Board Type | :Dual | ||
Environmental
| Operating Temperature | + 150 C | ||
